Orbital Lymphatic Malformation (Lymphangioma)

Orbital Lymphatic Malformation (Lymphangioma)

C. Blake Perry MD, Lucas Lenci MD, Erin M. Shriver MD
January 21, 2015

Current Complaint

Headache, vomiting, and "bulging of left eye." MRI showing a left orbital lesion.

History of Present Illness

One week prior to presentation, a 5 year-old female complained of an intermittent frontal headache. Over the next 2 days, she began having daily episodes of emesis and her parents noticed "bulging of her left eye."  She was taken to her local emergency room where an MRI was performed and demonstrated a left orbital lesion extending into the superior orbital fissure. She was transferred to the University of Iowa for further evaluation and management. Her parents reported no recent upper respiratory infection or other illness.

Past Ocular History: None

Past Medical History: None

Medications: None

Allergies: None

Family History: Non-contributory

Social History: Non-contributory

Physical Exam

Visual Acuity without correction (LEA Symbols):

  • Right eye (OD): 20/20-1
  • Left eye (OS): 20/20-2

Pupils: No afferent pupillary defect

  • OD: 6 mm (light), 4 mm (dark)
  • OS: 7 mm (light), 6 mm (dark)

Intraocular Pressure (Tonopen):

  • OD: 22 mmHg
  • OS: 18 mmHg

Extraocular motility: Full in both eyes (OU)

Confrontation visual fields: Full OU

Ishihara Color Vision: 14/14 plates OU

Hertel Measurements:

  • Base: 85 mm
  • OD: 14 mm
  • OS: 17 mm

External Exam (Figures 1 and 2): Proptosis OS with inferior scleral show OS. Increased tarsal platform show on the left upper lid compared to the right upper lid.


Proptosis OS with inferior scleral show OS. Increased tarsal platform show on the left upper lid compared to the right upper lid.

Figure 1: External photo on presentation demonstrates mild proptosis OS and increased fullness of left upper eyelid.


Figure 2: Proptosis left eye (3 mm by Hertel exophthalmometry)


Anterior segment examination: Normal OU

Fundus exam: Normal OU

Ancillary studies

Figure 3 a,b,c,d: MRI demonstrating left orbital lesion.

Axial T1 image showing left multicystic, intraconal mass with an amorphous shape and internal sepations. Minute fluid-fluid levels were appreciated by the neuro-radiology team as well as extension of the mass through the superior orbital fissure into the left cavernous sinus.

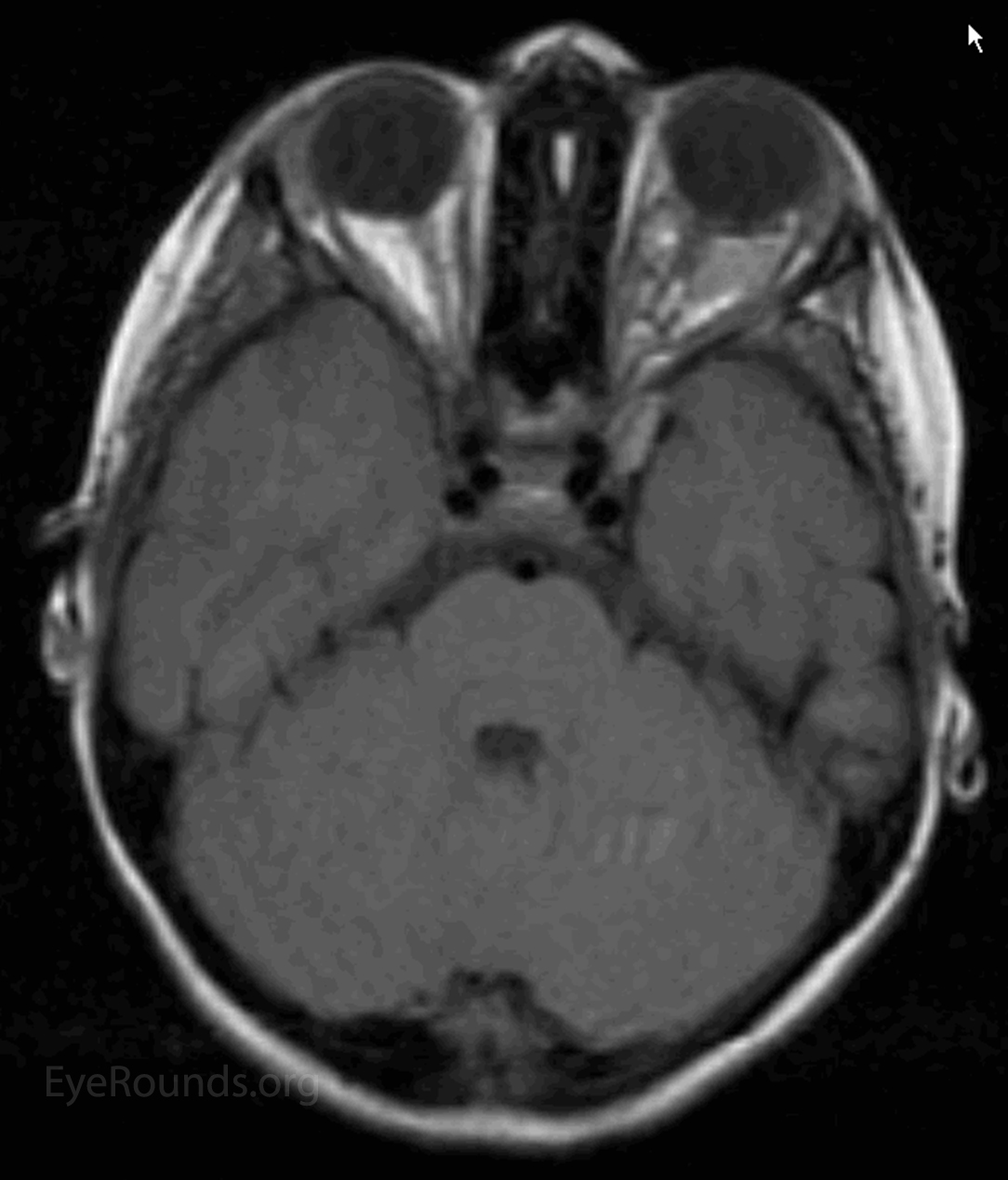

3a) Axial T1 image showing left multicystic, intraconal mass with an amorphous shape and internal sepations. Minute fluid-fluid levels were appreciated by the neuro-radiology team as well as extension of the mass through the superior orbital fissure into the left cavernous sinus.

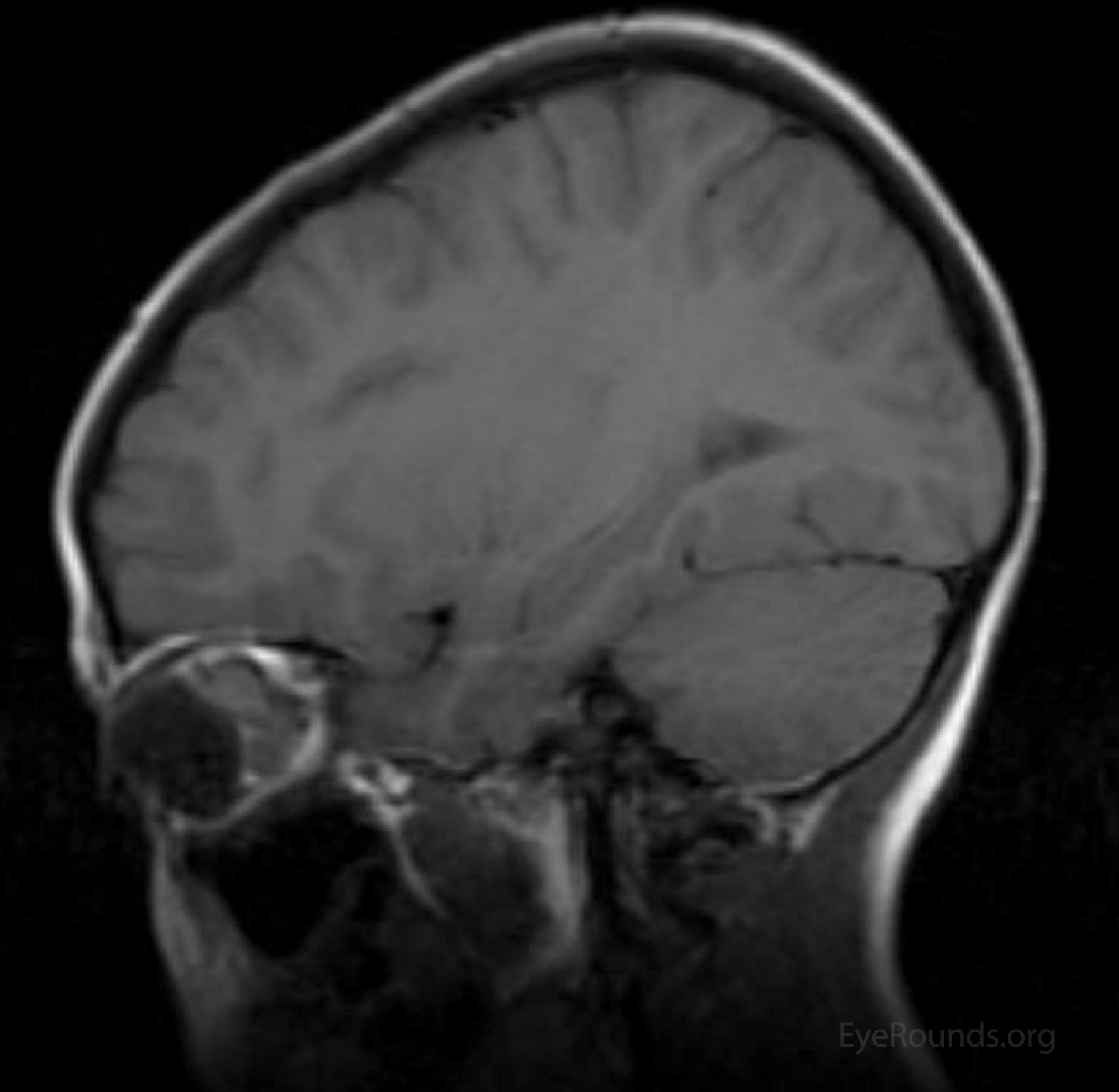

b) Sagittal T1 image demonstrating large non-encapsulated intraconal mass of the left orbit.
3b) Sagittal T1 image demonstrating large non-encapsulated intraconal mass of the left orbit.
c) Axial T2 image demonstrates minute fluid-fluid levels.

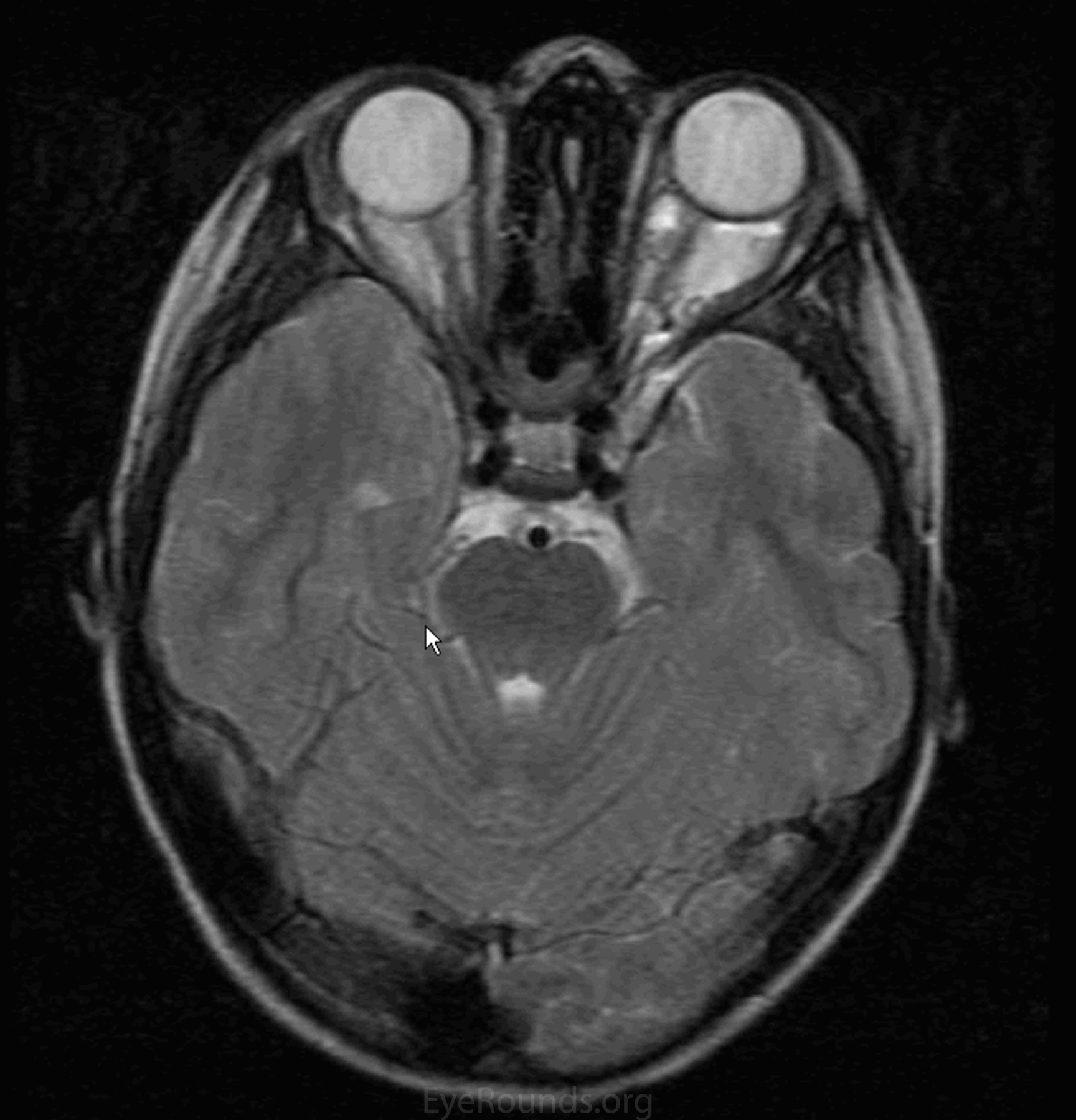

3c) Axial T2 image demonstrates minute fluid-fluid levels.

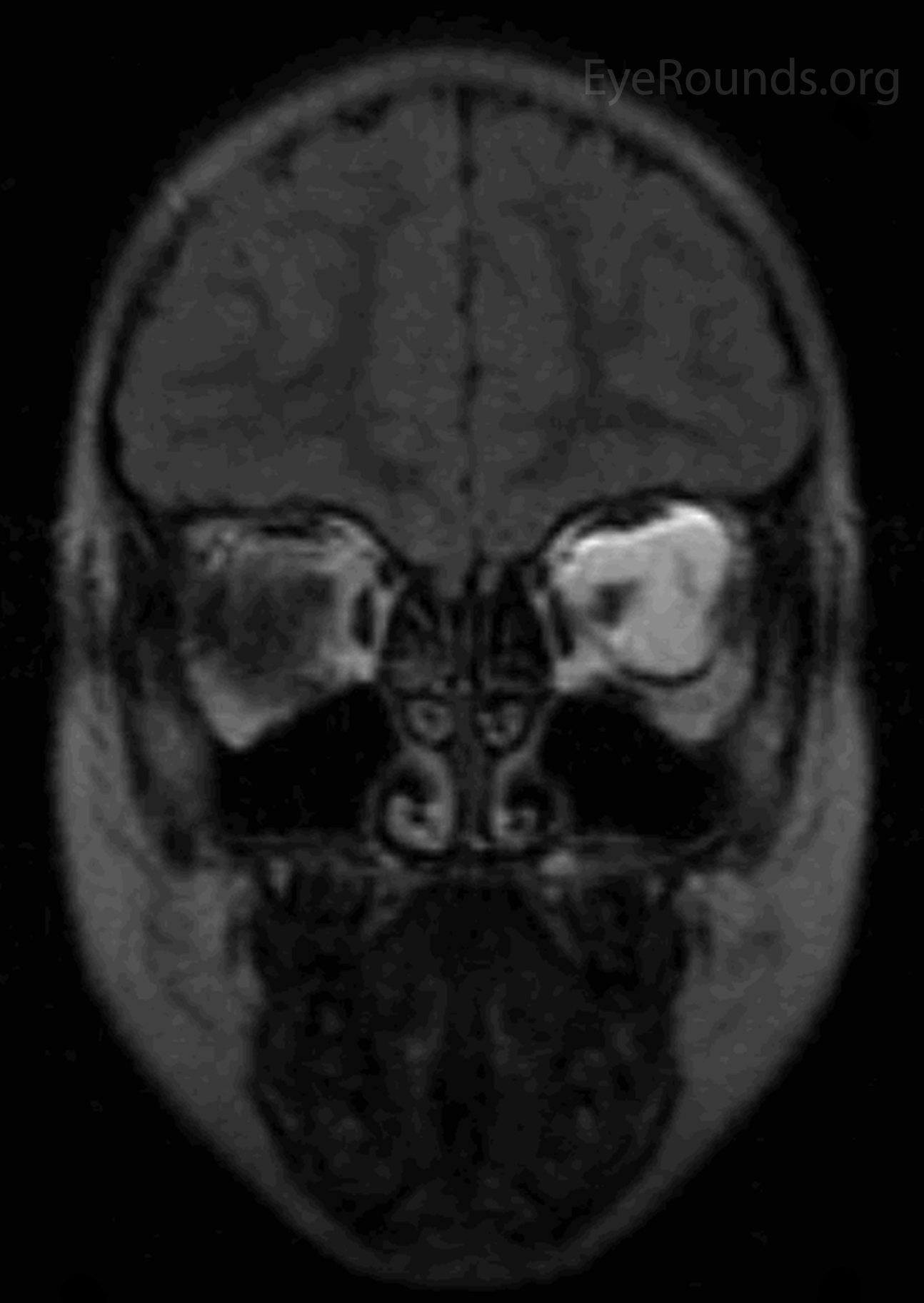

d) Coronal flair image showing left orbital mass.
3d) Coronal flair image showing left orbital mass.

Cirrus Optical Coherence Tomography showed no optic nerve edema and normal retinal nerve fiber layer.

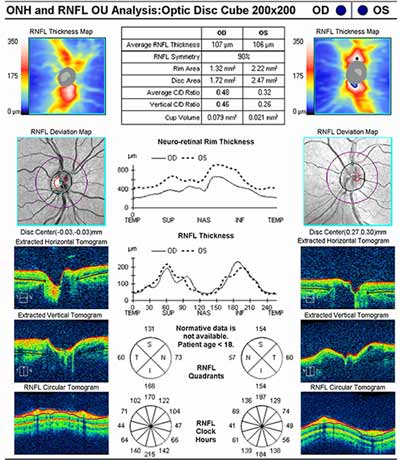

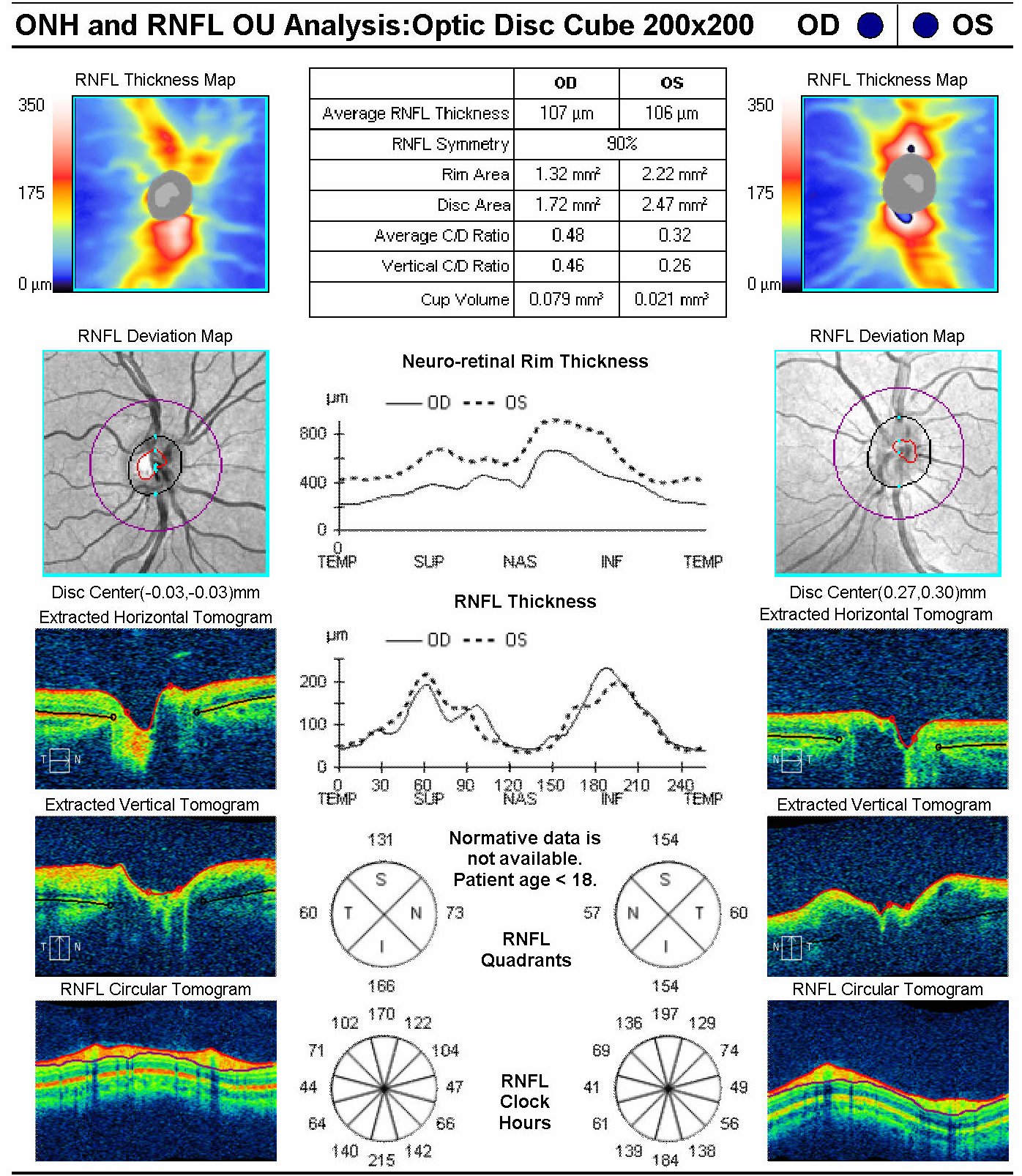

Figure 4: Cirrus Optical Coherence Tomography showed no optic nerve edema and normal retinal nerve fiber layer.

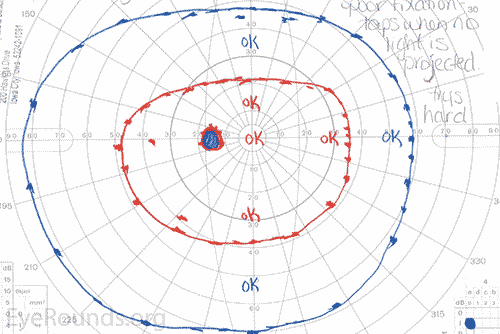

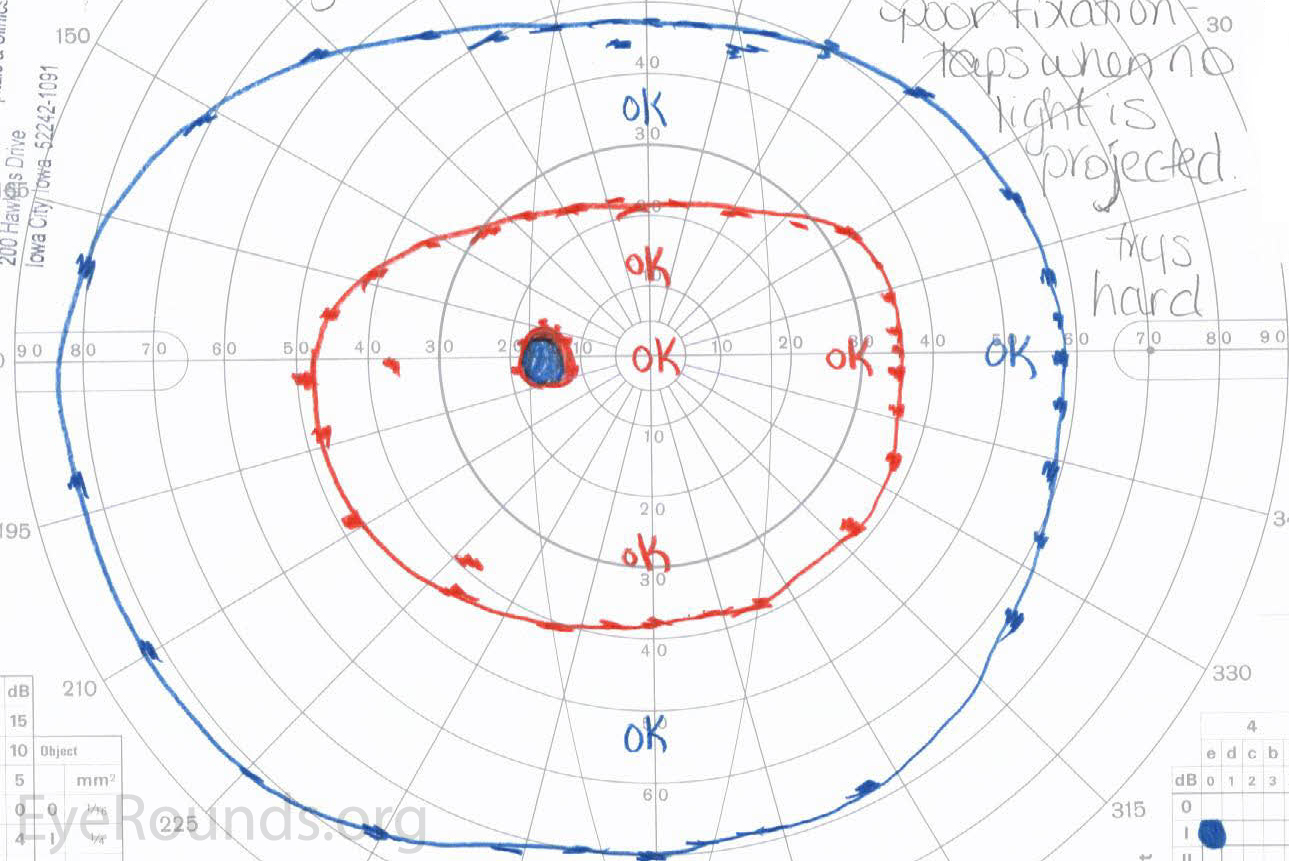

Figure 5: Goldmann visual field revealed a full visual field in the left eye.


Clinical Course

A diagnosis of lymphatic malformation was made based on the clinical and radiographic findings. After initial evaluation by the oculoplastics team, the patient was referred to neuro-ophthalmology for her anisocoria. No evidence of a third nerve palsy or tonic pupil was found. The anisocoria was thought to be physiologic in nature. However, due to the persistent headaches, nausea, and vomiting, the patient was also seen by pediatric neurology. A lumbar puncture was performed which was normal. Observation was recommended as there was no evidence of visual compromise. The headaches were thought to be either primary in nature or secondary to the lymphatic malformation. The patient was seen back one month later for follow up and was found to have stable vision, no increase in proptosis, and there was resolution of her anisocoria.

At the 6 month follow-up exam there was no evidence of visual compromise and the proptosis had decreased to 1 mm difference between the eyes (Figure 6). However, she continued to complain of headaches despite the use of acetominophen. The oculoplastics team recommended a follow up evaluation with neurology and a cardiology consult to consider sildenafil. The neurology service recommended that she discontinue acetaminophen and her headaches resolved without further intervention.

She was seen again 10 months after presentation with a stable exam and 1 mm of proptosis of the left eye. The headaches had subsided and the plan was made for continued observation.


6 month follow up photos demonstrate decreased tarsal platform show on the left upper lid and decreased proptosis 6 month follow up photos demonstrate decreased tarsal platform show on the left upper lid and decreased proptosis

Figure 6: 6 month follow up photos demonstrate decreased tarsal platform show on the left upper lid and decreased proptosis.


Discussion

Lymphatic malformations, previously known as lymphangiomas, are benign vascular tumors usually diagnosed in early childhood that represent 1-3% of orbital masses.[1] Histologically, lymphatic malformations consist of enlarged, nonencapsulated channels lined with a single layer of endothelium. The terminology for this vascular malformation has been debated. The term lymphangioma has gone out of favor as it implies a lymphatic neoplasm while the lesion itself is not a neoplasm and does not produce true lymphatic vessels. Rather, the hamartomatous lesion is an abnormal growth of endothelial lined channels.[2, 3] In 1999 the International Orbital Society produced a new classification system regarding vascular malformations. They grouped vascular malformations into the following three groups based on their clinical and hemodynamic relationships: 1) no flow malformations, 2) venous flow malformations, and 3) arterial flow malformations.[2] The so-called lymphangioma or lymphatic malformation falls into the no flow malformation category because it is hemodynamically isolated. However, it is often the case that a lesion has characteristics of more than one group. Debate continues on how to categorize combined vascular lesions. The Orbital Society's classification would place a lesion with any venous component into the venous flow category.[2] However, other groups categorize venous and lymphatic malformations based on which lesion type appears to be most dominant.[4] For example, a lymphatic dominant combined venous-lymphatic malformation would fall into the no flow category and venous dominate in the venous flow category.[4] Authors agree the nomenclature aims to emphasize the hemodynamic relationship to aid the clinician in surgical management. Although the term no flow orbital vascular malformation is a more appropriate description, the lesion is still commonly referred to as a lymphatic malformation or lymphangioma. The malformation can be superficial (no extension posterior to the equator), deep (exclusively posterior to the equator), or combined (having both superficial and deep components).[4]

Presentation

Lymphatic malformations are relatively uncommon orbital lesions. Deep orbital malformations often go unrecognized until an intralesional hemorrhage or upper respiratory tract infection occurs, causing clinical symptoms. The superficial lesions (Figure 7) come to clinical attention much sooner and are generally more of a cosmetic concern. They are much less likely to cause any visual compromise compared to the deep or combined lesions.


Figure 7: Example of superficial lymphatic malformation

Common presenting signs and symptoms of deep orbital lesions include proptosis, decreased vision, decreased motility, pain, and ptosis.[1] In one study of 26 patients diagnosed with an orbital lymphatic malformation, 85% presented with proptosis, 73% with ptosis, and 46% with motility restriction.[5] While the lesion itself is benign, it can threaten vision and/or cause cosmetic deformity. Vision loss is typically secondary to amblyopia or compressive optic neuropathy.

Imaging

Orbital imaging is essential in helping make the correct diagnosis and identifying the extent of the lesion. CT and MRI typically demonstrate a cluster of non-enhancing "grape-like" cystic lesions with internal septations.[6] MRI can often delineate fluid-fluid levels within the cyst that represent layering of blood products from a recent intralesional bleed. Blood will appear hyperintense on T1 imaging. These unencapsulated lesions often demonstrate an infiltrative growth pattern, intertwining extensively with other orbital structures.[6] Unlike a capillary hemangioma that is well encapsulated, lymphatic malformations frequently cross anatomic boundaries and tissue planes.[7] In keeping with the Orbital Society classification, true lymphatic malformations (no flow malformations) should demonstrate no enhancement with contrast studies due to their isolated vascular system. However, combined venous and lymphatic lesions will often demonstrate some degree of enhancement and evidence of feeder vessels due to their connection with the venous system.[4]

Ultrasound is another imaging modality that can aid in diagnosis. Although a skilled echographer is required, the patient is not exposed to radiation or intravascular contrast. Typical characteristics of a lymphatic malformation on ultrasound include an irregular shape with poorly outlined borders, areas of high reflectivity, no change with Valsalva maneuver, and no vascular connection.[8]

Lymphatic malformations can be further classified radiographically as macrocystic (cystic structures >1cm in size), microcystic (cystic structures <1cm in size), or combined.[1, 9]

Management

Historically, the treatment paradigm for lymphatic malformations was observation until surgical intervention was absolutely necessary. This was largely due to the high recurrence rate, difficulty of complete excision, and risk of injury to normal adjacent structures. However, recent advances could change the way we approach these lesions with a lower threshold for intervention. The management of lymphatic malformations now falls into 3 categories: 1) observation, 2) non-surgical intervention and 3) surgical excision.

Observation

Observation is an appropriate plan for asymptomatic patients in whom vision is not threatened. Given its infiltrative and amorphous structure, complete excision is often difficult and intraoperative complications can occur. Current indications for intervention include amblyopia, compressive optic neuropathy, exposure keratopathy, and severe cosmetic disfigurement.[3] However, because the clinical course is unpredictable some authors would pursue earlier intervention to minimize the risk of vision loss in the future.[1]

Non-surgical treatment

A wide range of non-surgical options have been used for orbital lymphatic malformations including sclerosing therapy, corticosteroids, sildenafil, laser therapy, and pre-operative embolization.[3, 4, 10-12] Numerous sclerosing agents have been used for sclerotherapy including bleomycin, doxycycline, Ethibloc, sodium tetradecyl sulfate, ethanol, and OK-432. Past studies have shown variable results with these single agents and various complications.[1, 13-16]

Recently Hill et al described a technique of percutaneous drainage and ablation of the cystic component of lymphatic malformations with good results in 13 patients. In their study macrocysts (>1cm) were treated with dual-drug chemoablation consisting of sodium tetradecyl sulfate and ethanol, and microcysts (<1cm) were treated with doxycycline alone. In addition, the macrocysts were drained and the catheter was left in place for 3 days to help prevent inflammatory edema and re-endothelialization of the cyst.[1] Their results were promising but the technique requires the use of interventional radiology, often multiple treatments, and a team of physicians with extensive experience with vascular lesions.

Small case series have also been reported on corticosteroids and sildenafil as potential options in treating lymphatic malformations.[11, 12] Gandhi et al recently published their success with sildenafil in two young boys with aggressive lesions who did not respond to drainage and sclerosing procedures.[12] However, large case series and randomized trials are lacking for both treatments.

Surgical Excision

Surgical excision has been a mainstay of treatment for patients with visual compromise or severe cosmetic deformity from lymphatic malformations. Surgical intervention is often combined with non-surgical interventions to help aid the surgeon in lesion removal. The surgical approach varies depending on the location and extent of the lesion. However, given its amorphous, unencapsulated nature, complete excision is difficult, often unsuccessful, and carries with it high complication rates including intraoperative hemorrhage and damage to adjacent normal structures. Cautery and CO2 laser can help reduce bleeding but can damage surrounding structures. The use of intraoperative fibrin glue has been described as an aid to surgical excision. The fibrin glue is injected into the cystic components of lymphatic malformations in order to provide a more solid structure to aid in dissection and improve hemostasis. Other techniques involve the combination of fibrin glue and sclerosing agents to help debulk these lesions.[3, 17] Often debulking is the primary goal to help prevent vision loss or improve cosmesis.

Conclusion

The clinical course of lymphatic malformations proves to be unpredictable. Although most can be observed, when intervention is required management can be difficult.

Differential Diagnosis of Orbital Mass

Vascular

  • Cavernous hemangioma
  • Capillary hemangioma
  • Hemangiopericytoma
  • Lymphatic Malformation
  • Venous Malformation
  • AV Fistula
  • Orbital hemorrhage

Neural

  • Schwannoma
  • Meningioma
  • Optic nerve glioma
  • Neurofibroma

Lymphoproliferative

  • Lymphoma
  • Langherhans cell histiocytosis
  • Xanthogranuloma

Mesenchymal

  • Rhabdomyosarcoma
  • Fibrous histiocytoma
  • Meningioma
  • Optic nerve glioma
  • Neurofibroma

Metastasis

  • Lung, Breast, Prostate
  • Neuroblastoma
  • Leukemia

Summary Chart

Epidemiology

  • Lymphatic malformations (no flow vascular malformation) represent 1-3% of orbital tumors
  • Most commonly seen in childhood
  • Classified as superficial, deep, or combined

Signs/Symptoms

Deep Orbital lesions: Most asymptomatic until intralesional hemorrhage or upper respiratory infection

  • Proptosis
  • Decreased vision
  • Decreased motility
  • Pain
  • Ptosis

Superficial lesions: present earlier, more of a cosmetic concern than a threat to vision loss

Imaging

Non-enhancing cystic lesions with internal septations ("cluster of grapes") often not respecting tissue plans; often fluid-fluid levels seen

Treatment

Observation

  • Often observed until vision threatened or severe cosmetic disfigurement

Non-surgical intervention (often combined with drainage of the cyst)

  • Sclerosants
  • Corticosteroids
  • Sildenafil

Surgical excision

  • Complete excision often not possible; debulking often the goal
  • Fibrin glue and sclerosants often used in combination to aid hemostasis and surgical excision
References
  1. Hill RH, Shiels WE, Foster JA, Czyz CN, Stacey A, Everman KR, et al. Percutaneous drainage and ablation as first line therapy for macrocystic and microcystic orbital lymphatic malformations. Ophthal Plast Reconstr Surg. 2012 Mar-Apr;28(2):119-25. PubMed PMID: 22366666.
  2. Harris GJ. Orbital vascular malformations: a consensus statement on terminology and its clinical implications. Orbital Society. Am J Ophthalmol. 1999 Apr;127(4):453-5. PubMed PMID: 10218699.
  3. Saha K, Leatherbarrow B. Orbital lymphangiomas: a review of management strategies. Curr Opin Ophthalmol. 2012 Sep;23(5):433-8. PubMed PMID: 22828166.
  4. Garcia DD, Heran MK, Amadi AJ, Rootman J. Low outflow distensible venous malformations of the anterior orbit: presentation, hemodynamic factors, and management. Ophthal Plast Reconstr Surg. 2011 Jan-Feb;27(1):38-43. PubMed PMID: 20700072.
  5. Tunc M, Sadri E, Char DH. Orbital lymphangioma: an analysis of 26 patients. Br J Ophthalmol. 1999 Jan;83(1):76-80. PubMed PMID: 10209440. Pubmed Central PMCID: 1722774.
  6. Khan SN, Sepahdari AR. Orbital masses: CT and MRI of common vascular lesions, benign tumors, and malignancies. Saudi J Ophthalmol. 2012 Oct;26(4):373-83. PubMed PMID: 23961022. Pubmed Central PMCID: 3729513.
  7. Graeb DA, Rootman J, Robertson WD, Lapointe JS, Nugent RA, Hay EJ. Orbital lymphangiomas: clinical, radiologic, and pathologic characteristics. Radiology. 1990 May;175(2):417-21. PubMed PMID: 2326469.
  8. Ko F, DiBernardo CW, Oak J, Miller NR, Subramanian PS. Confirmation of and differentiation among primary vascular lesions using ultrasonography. Ophthal Plast Reconstr Surg. 2011 Nov-Dec;27(6):431-5. PubMed PMID: 21785379.
  9. Gooding C, Meyer D. Intralesional bleomycin: a potential treatment for refractory orbital lymphangiomas. Ophthal Plast Reconstr Surg. 2014 May-Jun;30(3):e65-7. PubMed PMID: 24025999.
  10. Harris GJ, Sakol PJ, Bonavolonta G, De Conciliis C. An analysis of thirty cases of orbital lymphangioma. Pathophysiologic considerations and management recommendations. Ophthalmology. 1990 Dec;97(12):1583-92. PubMed PMID: 2087290.
  11. Sires BS, Goins CR, Anderson RL, Holds JB. Systemic corticosteroid use in orbital lymphangioma. Ophthal Plast Reconstr Surg. 2001 Mar;17(2):85-90. PubMed PMID: 11281596.
  12. Gandhi NG, Lin LK, O'Hara M. Sildenafil for pediatric orbital lymphangioma. JAMA Ophthalmol. 2013 Sep;131(9):1228-30. PubMed PMID: 23828510.
  13. Okazaki T, Iwatani S, Yanai T, Kobayashi H, Kato Y, Marusasa T, et al. Treatment of lymphangioma in children: our experience of 128 cases. J Pediatr Surg. 2007 Feb;42(2):386-9. PubMed PMID: 17270554.
  14. Suzuki Y, Obana A, Gohto Y, Miki T, Otuka H, Inoue Y. Management of orbital lymphangioma using intralesional injection of OK-432. Br J Ophthalmol. 2000 Jun;84(6):614-7. PubMed PMID: 10837387. Pubmed Central PMCID: 1723521.
  15. Paramasivam S, Fay A, Fifi J, Berenstein A. O-015 image guided bleomycin sclerotherapy for orbital lymphatic malformation. J Neurointerv Surg. 2014 Jul;6 Suppl 1:A8-9. PubMed PMID: 25064997.
  16. MacIntosh PW, Yoon MK, Fay A. Complications of intralesional bleomycin in the treatment of orbital lymphatic malformations. Semin Ophthalmol. 2014 Sep-Nov;29(5-6):450-5. PubMed PMID: 25325873.
  17. Boulos PR, Harissi-Dagher M, Kavalec C, Hardy I, Codere F. Intralesional injection of Tisseel fibrin glue for resection of lymphangiomas and other thin-walled orbital cysts. Ophthal Plast Reconstr Surg. 2005 May;21(3):171-6. PubMed PMID: 15942489.
