Symptomatic Branch Retinal Artery Occlusion: An Under-Recognized Sign of Stroke

Authors: Ryan J. Diel, MD; Zachary Mortensen, MD; James Folk, MD; A. Tim Johnson, MD

Posted April 14, 2020

INITIAL PRESENTATION

Chief Complaint

Blurred vision of the right eye with constriction of visual field

History of Present Illness

A 61-year-old woman presented for evaluation of sudden onset blurry vision of the right eye, with associated complete loss of the right inferior visual field. The patient stated that the sudden vision loss occurred while she was taking a shower. She could not recall any preceding events leading up to the acute vision loss or any similar events in the past. She denied difficulty walking or standing; however, her husband stated that she appeared unsteady while walking. She denied headaches, neck pain, weakness, or numbness. She initially presented to her local emergency room where she was first evaluated by neurology and emergently worked-up for a possible stroke. CT angiogram of the head and brain revealed findings concerning for a right vertebral artery obstruction and she was transferred to the University of Iowa Hospitals and Clinics (UIHC) for further evaluation. Upon arrival to UIHC, the patient underwent an MRA of the head and neck with and without contrast, which demonstrated 70% stenosis of the right internal carotid, and less than 50% stenosis of the left internal carotid. Given the presence of reported right inferior hemianopia with significant carotid stenosis, evaluation by ophthalmology was requested.

Past Ocular History

  • Hyperopia
  • Presbyopia

Past Medical History

  • Transient ischemic attack
  • Squamous cell carcinoma of the throat
  • Type 2 diabetes mellitus
  • Migraine headaches
  • Anxiety/depression
  • Snoring but no diagnosis of obstructive sleep apnea

Past Surgical History

  • Left tonsillectomy
  • External beam radiation of the throat
  • Various neck/spine surgeries including a C5-C6 fusion three-layer laminectomy
  • Caesarean section
  • Appendectomy
  • Cholecystectomy

Medications

  • Artificial tears
  • Alprazolam
  • Buspirone
  • Cetirizine
  • Furosemide
  • Metformin
  • Omeprazole
  • Spironolactone
  • Sumatriptan
  • Tramadol

Allergies

  • Sulfa drugs (hives)
  • Trazadone (hives)

Family History

  • Mother – glaucoma
  • Grandfather – blind in one eye, unknown cause

Social History

  • Former 2 packs/day cigarette smoker x 35 years, quit 12 years ago
  • Former heavy alcohol use; no longer drinks

Review of Systems

  • Negative unless otherwise noted in the history of present illness or above.

OCULAR EXAMINATION

Visual Acuity with Correction (Snellen)

  • Right eye (OD): 20/20-2
  • Left eye (OS): 20/20-1

Ocular Motility/Alignment

  • Full versions in both eyes (OU)

Intraocular Pressure (by Tonopen)

  • OD: 20 mmHg
  • OS: 20 mmHg

Pupils

  • OD: 3 mm in dark, 2.5 mm in light, 0.3 log unit relative afferent pupillary defect (RAPD)
  • OS: 3 mm in dark, 2 mm in light, no RAPD

Confrontational Visual Fields (count fingers)

  • OD: near total inferior nasal deficit that respects the horizontal midline
  • OS: normal

External

  • OU: Normal

Slit lamp exam

  • Lids/lashes: Normal OU
  • Conjunctiva/sclera: Clear and quiet OU
  • Cornea: Clear OU
  • Anterior Chamber: Deep and quiet OU
  • Iris: Normal architecture OU
  • Lens: Trace nuclear and cortical cataract OU

Dilated fundus examination (DFE)

  • Vitreous: Normal OU
  • Disc:
    • OD: Embolus visible at the nerve lodged within a branch of the superior arcade
    • OS: Normal
  • Cup-to-disc: 0.65 OU
  • Macula: Normal OU
  • Vessels:
    • OD: Attenuation of branch retinal artery superiorly with embolus present at branch site
    • OS: Normal
  • Periphery: Retinal edema in an arcuate pattern along the superior arcade

Differential Diagnosis

  • Branch retinal artery occlusion (BRAO)
  • Central retina artery occlusion (CRAO)
  • Arteritic anterior ischemic optic neuropathy (AAION)
  • Non-arteritic anterior ischemic optic neuropathy (NAION)
  • Acute retinal necrosis

Additional Testing

Vascular Carotid Duplex Ultrasound

  • Calcified right and left internal and external carotid arteries. Right and left internal carotid arteries 1-49% stenosis, right and left external carotid arteries <50% stenosis

Fundus Photography

Color fundus photography of the right eye demonstrates a large cup-to-disc ratio of 0.6 with associated peripapillary atrophy and a Hollenhorst plaque lodged within a branch point of the superior arcade

Figure 1: Color fundus photography of the right eye (left panel) demonstrates a large cup-to-disc ratio of 0.6 with associated peripapillary atrophy and a Hollenhorst plaque lodged within a branch point of the superior arcade. Diffuse retinal whitening can be seen extending along the superior arcade. The Hollenhorst plaque is better appreciated in the inset. Color fundus photography of the left eye (right side image) demonstrates a symmetric enlarged cup-to-disc ratio of 0.6 and peripapillary atrophy. No embolus of the left eye is identified.

Humphrey Visual Field Testing

Visual field testing in both eyes demonstrated poor testing reliability.

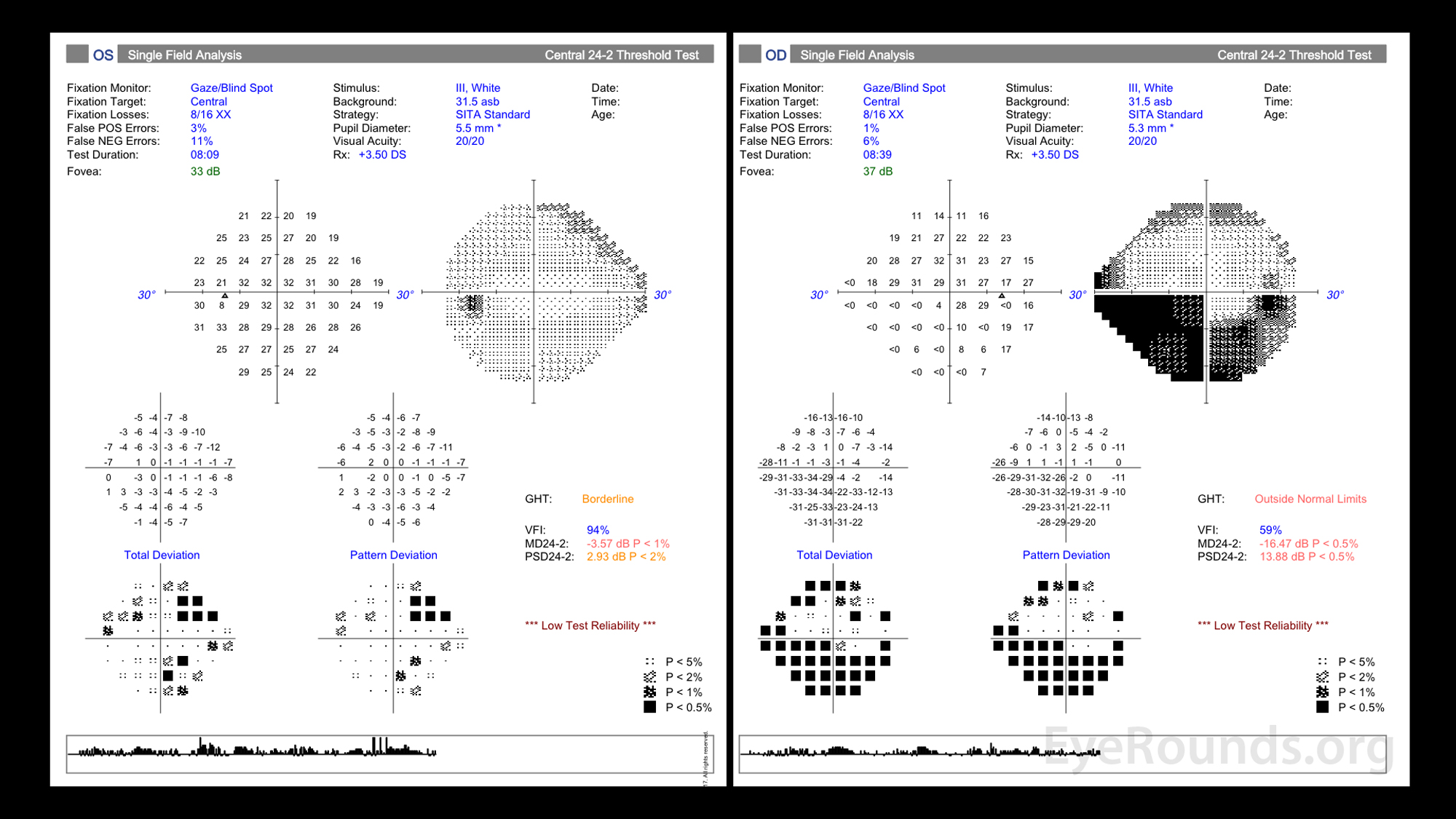

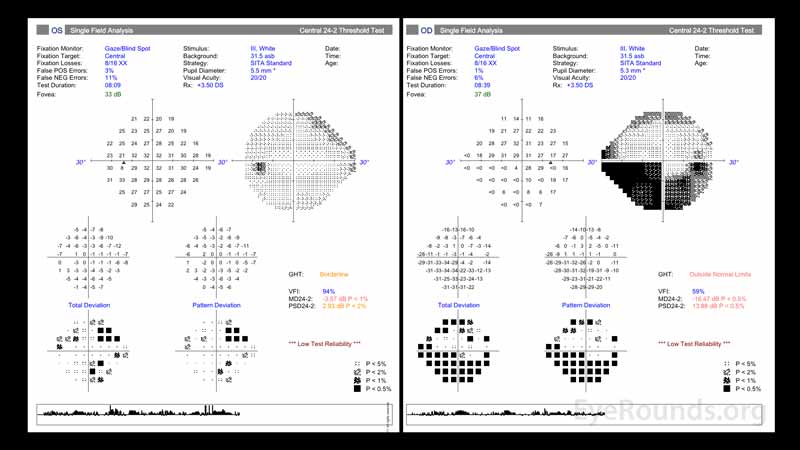

Figure 2: Visual field testing in both eyes demonstrated poor testing reliability. The right eye visual field (right panel) demonstrates an inferior defect that extends in an arcuate pattern originating from the optic disc. The defect is greatest nasally and respects the horizontal meridian. The left eye (left panel) demonstrates non-specific changes.

Optical Coherence Tomography (OCT)

OCT of the right eye is significant for diffuse inner retinal thickening extending along the superior arcade

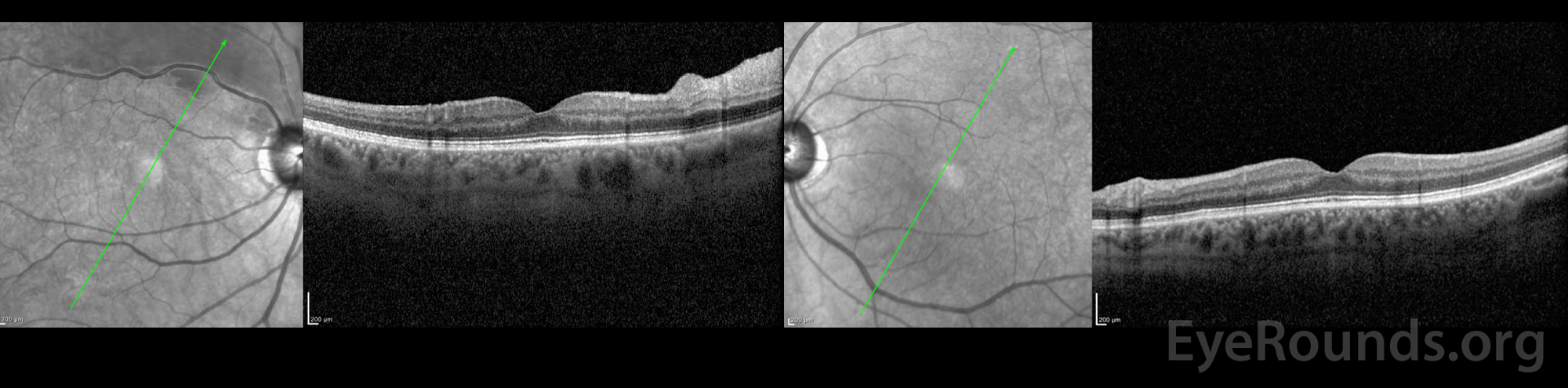

Figure 3: OCT of the right eye (left panel) is significant for diffuse inner retinal thickening extending along the superior arcade. The macula is otherwise normal. OCT of the left eye (right panel) is normal.

Diagnosis

Branch retinal artery occlusion of the right eye

CLINICAL COURSE

No acute ophthalmic intervention was initiated because symptom onset occurred >18 hours prior to evaluation. The patient was started on aspirin 81mg, clopidogrel, and atorvastatin therapy for the secondary prevention of stroke. Though clopidogrel was recommended, the patient voiced concerned about the bleeding risk associated with dual anti-platelet therapy and was only intermittently compliant before ultimately self-discontinuing. She was evaluated by interventional neurology who recommend the patient be scheduled for a stent assisted angioplasty.

DISCUSSION

Introduction

Retinal artery occlusion occurs when an artery in the retina is blocked, most commonly due to emboli. Occlusion of the central retinal artery (CRAO), a branch of the central retinal artery (BRAO), or the cilioretinal artery (CLRAO) may occur. The sensitive neural tissue of the retina is highly dependent on adequate blood flow; therefore occlusion of one of these arteries can have profound visual effects resulting in transiet or permanent visual field loss [1, 2].

Epidemiology/Etiology

CRAO and BRAO are rare entities. The incidence of CRAO is between 1-2 persons per 100,000 per year [3] while the incidence of BRAO is closer to 5 per 100,000 persons per year [2]. Retinal artery occlusion can occur in patients of all ages, but is more common in older adults. Some causes, such as thrombophilia, are more often seen in younger adults [4, 5].

Risk factors for embolic BRAOs are similar to risk factors for cardiovascular disease. Diabetes mellitus, hyperlipidemia, hypertension, coronary artery disease, tobacco use, history of cerebral vascular accidents, and family history of vascular disease all pose significant risk in the development of CRAO and/or BRAO. Less common risk factors include: sickle cell disease, myeloproliferative disorders, antiphospholipid antibody syndrome, hypercoagulable states, IV drug use, and oral contraceptive use [4, 5].

Pathophysiology

The central retinal artery and/or the cilioretinal artery (present in 20-25% of eyes) supply the retina. The internal carotid artery gives rise to the central retinal artery which branch at the optic nerve head into the superior and inferior arcades while the cilioretinal artery originates from the posterior ciliary artery.

BRAO results in decreased perfusion to the retina resulting in retinal ischemia, which leads to necrosis of the inner layers of the retina and consequent loss of vision [6].  The severity of retinal damage is associated with elapsed time of occlusion and the area of retina affected. Primate studies have shown that irreversible damage occurs after 4 hours, but may occur in as little as 90 minutes [7].

Carotid artery plaques are the most common source of emboli. Such plaques are derived from cholesterol (Hollenhorst plaques). Platelet-fibrin emboli and calcific cardiogenic emboli are also common sources. More rare entities such as fat emboli, septic emboli originating from diseased heart valves, and atherosclerotic emboli dislodged during vascular procedures can also cause BRAO [4, 8].

BRAO may be associated with other conditions affecting the carotid, ophthalmic, or retinal arteries. Some of these entities include: Crohn's disease, Lyme disease, multifocal retinitis, Meniere's disease, migraine, prepapillary loops, Susac syndrome, toxoplasma chorioretinitis, sickle cell disease, Takayasu arteritis, Whipple disease, and others. It may also be caused by states of relative hypoperfusion either from increased intraocular pressure or decreased perfusion during a vasospastic event. It is important to note that while GCA can cause CRAO and/or CLRAO (cilioretinal artery occlusion), GCA cannot cause BRAO since GCA affects larger vessels. These "branch retinal arteries" are technically smaller arterioles [4].

Signs/Symptoms

Patients commonly present with sudden painless monocular vision loss. The degree of vision loss depends upon the vessel implicated. BRAO typically results in much less severe visual loss than CRAO and is usually restricted to a section of the visual field. In more than half of BRAO cases, visual acuity is not drastically impaired [9]. Seventy-four percent of patients with a permanent BRAO and ninety-four percent of patients with transient BRAO present with 20/40 vision or better. In contrast, seventy-four percent of patients with CRAO present with vision worse than CF [1].

Fundoscopic exam of the affected eye may acutely demonstrate cotton wool spots. Within hours to days, retinal opacification (whitening) along the section of the blocked artery will appear. Often an embolism at the site of occlusion is visualized during fundoscopic exam [10]. It is important to also assess the contralateral eye for evidence of small vessel disease, and to probe patients for additional history if GCA is on the differential.

Treatment/Management

Only limited evidence exists regarding the efficacy of immediate treatment of embolic retinal artery occlusion. Some methods include: ocular massage, Nd:YAG laser, IOP-lowering medications, hyperventilation, and hyperbaric oxygen; however, none have strong evidence of improving visual outcomes [12]. Thrombolytic therapy has been investigated but is controversial [11]. Most importantly, symptomatic carotid artery disease can be treated with medical therapy or endarterectomy in patients with more than 70% carotid artery occlusion. Secondary prevention therapies are important for strokes or TIA, such as antiplatelet therapy, statin therapy, or thromboembolic prophylaxis.

Complications of both CRAO and BRAO include neovascularization. In a retrospective review of 286 eyes (83 CRAOs and 203 BRAOs), 14.5% of CRAO eyes developed neovascularization. Of these, iris neovascularization predominates with neovascular glaucoma developed in 83% of eyes. In contrast, iris neovascularization occurred in <1% of BRAO eyes [13]. Intravitreal anti-vascular endothelial growth factor (anti-VEGF) and panretinal photocoagulation are reserved for neovascular complications [11].

A systems based approach to management

According to the Centers for Disease Control and Prevention, stroke is a major cause of serious long-term disability and the fifth leading cause of death in the United States. While most healthcare providers are trained to recognize the presenting signs and symptoms of a stroke, few may recognize a CRAO or BRAO, which are considered stroke equivalents, as an indication for prompt stroke work-up at a certified stroke center.[11] Despite the National Stroke Association, American Heart Association, and American Academy of Ophthalmology guidelines recommending referral of such patients, only 18-35% of ophthalmologists report referring patients presenting acutely for an embolic retinal artery occlusion [12].

The primary role of the ophthalmologist is to first identify and recognize a CRAO or symptomatic BRAO, and then refer to a stroke center for additional work-up. In patients older than 50 years of age, GCA should also be considered. If there is a high clinical suspicion for a suspected arteritic process such as GCA, immediate treatment with high dose systemic corticosteroids should be initiated. Non-acute or asymptomatic BRAO still merit systemic work-up, but there is limited evidence for urgent stroke center referral [11].

It is important to recognize that symptomatic patients may not always present to an ophthalmologist office; therefore, all primary care providers (particularly emergency department physicians and trainees) be aware of the preferred practice patterns set forth by the American Academy of Ophthalmology in the management of acute symptomatic retinal and ophthalmic artery occlusions. Emergency department physicians and trainees should also be familiar with these guidelines should there be no stroke center available for prompt referral. A quick resource guide to find the nearest stroke center is: https://www.npr.org/2009/12/11/121051484/find-a-certified-u-s-stroke-center-near-you.

A typical stroke work-up may include: MRA of the head and neck, evaluation of the carotid arteries via Doppler ultrasound or CTA, EKG, echocardiogram, and blood pressure and cardiac monitoring [12]. In patients 50 years or younger, workup may also include specialized coagulation studies (e.g., protein C&S, factor V Leiden, anticardiolipin, and lupus anticoagulant). Vasculitides, myeloproliferative, or sickle cell disease should also be considered [11].

In addition to the above evaluation, ophthalmologists also have a supportive role to play in primary prevention. Ophthalmologists should work closely with a patient's primary care physician to ensure all modifiable risk factors such as: hypertension, atherosclerotic disease, coronary artery disease, diabetes, and smoking are being addressed properly.

Prognosis

Fifteen to twenty-five percent of patients with acute retinal ischemia also have evidence of stroke and/or have a significant risk of stroke, even if presenting without other focal neurologic deficits.[12] Eighty percent of patients with CRAO suffer visual acuities 20/400 or worse while more than 90% of patients with BRAO will see better than 20/40.[8] Improvement usually occurs within weeks.

EPIDEMIOLOGY/ETIOLOGY

  • CRAO between 1-2 cases/100,000 per year [3]
  • BRAO 5 cases/100,000 per year [2]
  • More common in older adults with significant vascular risk factors
  • Vasculidities (i.e., GCA), thrombophilias (e.g., sickle cell) should be considered

SIGNS

  • Cotton-wool spots
  • Retinal opacification/whitening along section of blocked artery
  • Embolism/Hollenhorst plaque sometimes visualized at site of occlusion
  • OCT demonstrates diffuse inner retinal edema and thickening along affected vessel acutely followed by thinning.

SYMPTOMS

  • Acute painless monocular vision loss
  • Visual loss depends on vessel implicated whether central retinal artery versus a branch retinal artery [7]
  • Macular function may be preserved if cilioretinal artery present [8]

TREATMENT/MANAGEMENT[11]

  • Immediate referral to nearest stroke center
  • Imaging: MRA head/neck, evaluation of the carotid arteries (either with CTA or Doppler ultrasound), EKG, echocardiogram
  • If suspecting GCA in CRAO, initiate high dose steroids
  • Limited evidence regarding immediate treatments
  • Referral for treatment of underlying symptomatic carotid disease if identified

References

  1. Hayreh SS. Ocular vascular occlusive disorders: natural history of visual outcome. Prog Retin Eye Res 2014;41:1-25.  https://PubMed.gov/24769221. DOI: 10.1016/j.preteyeres.2014.04.001
  2. Chang YS, Ho CH, Chu CC, Wang JJ, Tseng SH, Jan RL. Risk of retinal artery occlusion in patients with diabetes mellitus: A retrospective large-scale cohort study. PLoS One 2018;13(8):e0201627.  https://PubMed.gov/30091989. DOI: 10.1371/journal.pone.0201627
  3. Leavitt JA, Larson TA, Hodge DO, Gullerud RE. The incidence of central retinal artery occlusion in Olmsted County, Minnesota. Am J Ophthalmol 2011;152(5):820-823.e822.  https://PubMed.gov/21794842. DOI: 10.1016/j.ajo.2011.05.005
  4. Hayreh SS. Acute retinal arterial occlusive disorders. Prog Retin Eye Res 2011;30(5):359-394.  https://PubMed.gov/21620994. DOI: 10.1016/j.preteyeres.2011.05.001
  5. Varma DD, Cugati S, Lee AW, Chen CS. A review of central retinal artery occlusion: clinical presentation and management. Eye (Lond) 2013;27(6):688-697.  https://PubMed.gov/23470793. DOI: 10.1038/eye.2013.25
  6. Goldenberg-Cohen N, Dadon S, Avraham BC, Kramer M, Hasanreisoglu M, Eldar I, Weinberger D, Bahar I. Molecular and histological changes following central retinal artery occlusion in a mouse model. Exp Eye Res 2008;87(4):327-333.  https://PubMed.gov/18639547. DOI: 10.1016/j.exer.2008.06.014
  7. Hayreh SS, Zimmerman MB, Kimura A, Sanon A. Central retinal artery occlusion. Retinal survival time. Exp Eye Res 2004;78(3):723-736.  https://PubMed.gov/15106952. DOI: 10.1016/s0014-4835(03)00214-8
  8. Hayreh SS, Podhajsky PA, Zimmerman MB. Branch retinal artery occlusion: natural history of visual outcome. Ophthalmology 2009;116(6):1188-1194.e1181-1184.  https://PubMed.gov/19376586. DOI: 10.1016/j.ophtha.2009.01.015
  9. Yuzurihara D, Iijima H. Visual outcome in central retinal and branch retinal artery occlusion. Jpn J Ophthalmol 2004;48(5):490-492.  https://PubMed.gov/15486774. DOI: 10.1007/s10384-004-0102-y
  10. Ros MA, Magargal LE, Uram M. Branch retinal-artery obstruction: a review of 201 eyes. Ann Ophthalmol 1989;21(3):103-107.  https://PubMed.gov/2735694
  11. Dattilo M, Newman NJ, Biousse V. Acute retinal arterial ischemia. Ann Eye Sci 2018;3.  https://PubMed.gov/30198015. DOI: 10.21037/aes.2018.05.04
  12. Olsen TW, Pulido JS, Folk JC, Hyman L, Flaxel CJ, Adelman RA. Retinal and Ophthalmic Artery Occlusions Preferred Practice Pattern(R). Ophthalmology 2017;124(2):P120-p143.  https://PubMed.gov/27742458. DOI: 10.1016/j.ophtha.2016.09.024
  13. Mason JO, 3rd, Patel SA, Feist RM, Albert MA, Jr., Huisingh C, McGwin G, Jr., Thomley ML. Ocular neovascularization in eyes with a central retinal artery occlusion or a branch retinal artery occlusion. Clin Ophthalmol 2015;9:995-1000.  https://PubMed.gov/26089631. DOI: 10.2147/opth.S82796
