Refractory Primary Open-Angle Glaucoma Treated with Ab Interno Canaloplasty (ABiC)

Refractory Primary Open-Angle Glaucoma Treated with Ab Interno Canaloplasty (ABiC)

Jason P. Kam, MD and Daniel I. Bettis, MD
posted January 6, 2017


Chief Complaint

Elevated intraocular pressure (IOP) left eye

History of Present Illness (HPI)

A 59-year-old male presented with a history of Granulomatosis with Polyangiitis (GPA) - formerly known as Wegener's Granulomatosis, medically-uncontrolled primary open angle glaucoma (POAG), and pathologic myopia. He had previously undergone retinal detachment repair with a scleral buckle and subsequent glaucoma drainage device (GDD) implantation for refractory glaucoma. Over time, both of these developed recurrent erosion with exposure, requiring multiple revisions. At this time, he was referred by an outside provider with an IOP of 31 mm Hg in his contralateral (better seeing) eye on maximum tolerated medical therapy (MTMT).

Past Ocular History

  • Pathologic Myopia – both eyes (OU)
  • Retinal Detachment 1984 s/p (status post) Scleral Buckle and Cryotherapy right eye (OD) – complicated by subsequent exposure of encircling band
  • status post (s/p) Laser-Assisted In-Situ Keratomileusis (LASIK) OU 1990
  • Phacoemulsification with intraocular lens implant & Baerveldt Tube 2001 OD – complicated by recurrent erosion
  • Cataract left eye (OS)

Past Medical History

  • GPA
  • Asthma
  • Type 2 Diabetes Mellitus
  • Hypertension
  • History of Tobacco use
  • History of bowel perforation

Past Surgical History

  • Colostomy


  • Brimonidine three times a day (TID) OS
  • Latanoprost every night at bed time (QHS) OS
  • Brinzolamide TID OS
  • Pilocarpine four times a day (QID) OS
  • Vigamox twice a day (BID) OD
  • Acetazolamide 250mg by mouth TID
  • Erythromycin ointment BID OU
  • Prednisone 10mg
  • Budesonide
  • Metoprolol
  • Spironolactone
  • Tizanidine
  • Acetaminophen-Hydrocodone
  • Docusate
  • Milk of Magnesium
  • Potassium


  • None

Family History

  • Grandmother (Paternal) with Glaucoma

Social History

  • Former smoker

Review of Systems

  • Negative except as listed in HPI


Visual Acuity

  • Right eye (OD): 20/125, pinhole to 20/70
  • Left eye (OS): 20/50, pinhole to 20/25

Ocular Motility

Full both eyes (OU)

Intraocular Pressure

  • OD: 8 mm Hg
  • OS: 24 mm Hg

Central Corneal Thickness

  • OD: 410 microns
  • OS: 462 microns


  • OD: 5 mm in dark, 3 mm in light, no relative afferent pupillary defect (RAPD)
  • OS: 4 mm in dark, 3 mm in light, + posterior synechiae (PS), no RAPD

Slit lamp exam


  • External/Eyelids: Permanent temporal tarsorrhaphy
  • Conjunctiva: tube superotemporally with thin conjunctival coverage. Inferonasal scleral buckle exposed.
  • Cornea: Epithelium intact, 3.5 mm (vertical) x 4 mm (horizontal) stromal thinning (80% thickness) inferiorly, inferior stromal neovascularization
  • Anterior chamber: deep, no cell or flare, tube superotemporally, embedded in iris but patent
  • Iris: Normal architecture
  • Lens: Posterior chamber intraocular lens
  • Anterior Vitreous: Hazy


  • External/Eyelids: Normal
  • Conjunctiva: Clear and quiet
  • Cornea: Clear, no endothelial pigment or keratic precipitates
  • Anterior chamber: slightly shallow
  • Iris: inferotemporal peripheral iridectomy patent, trans-illumination defects temporally, poor dilation
  • Lens: 2+ Nuclear Sclerosis, broad posterior synechiae temporally
  • Anterior Vitreous: clear


Dilated fundus examination (DFE)

  • OD: Peripapillary atrophy (PPA), pale, cupped nerve with 0.9 cup to disc ratio
    • Macula: flat
    • Peripheral laser/cryo scars, peripheral cobblestone with scleral buckle.
  • OS: PPA, optic nerve with inferotemporal thinning and 0.7 cup to disc ratio
    • Macula: flat
    • Normal macula/vessels/periphery

Additional testing

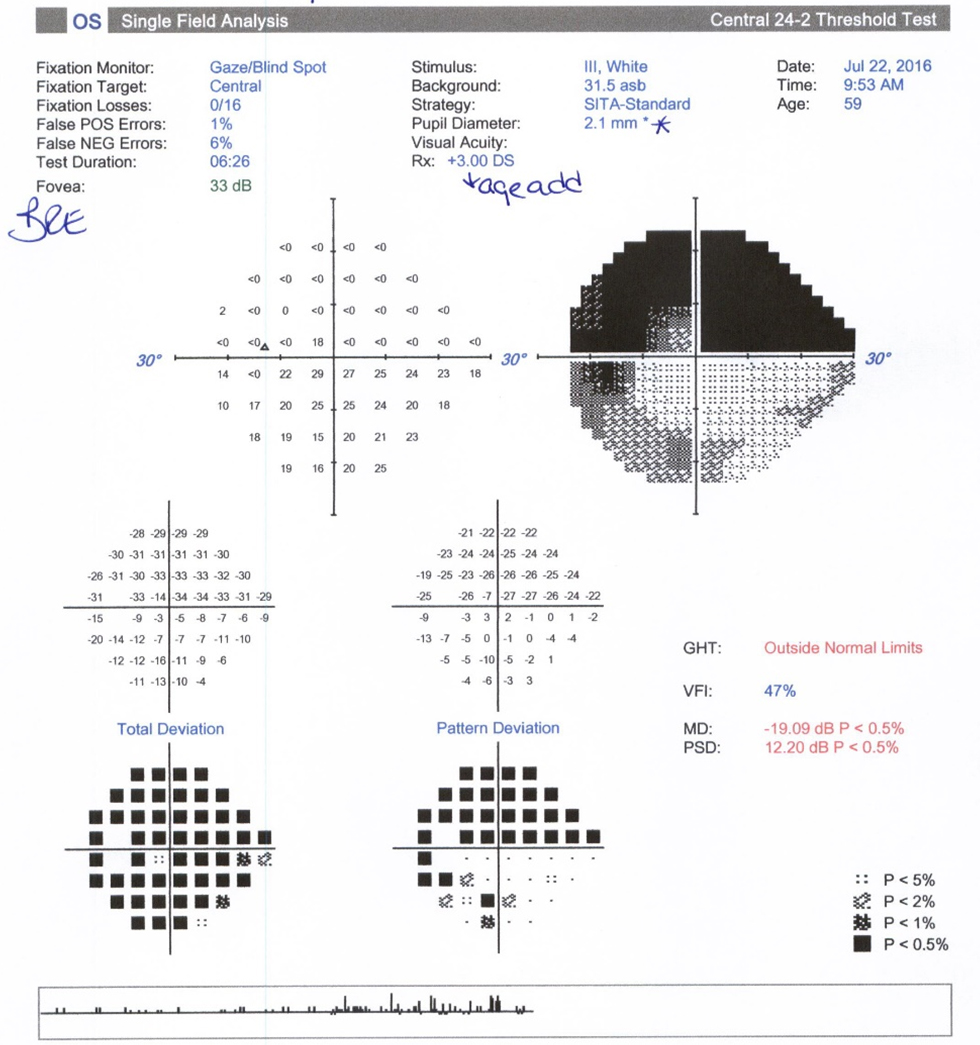

Figure 1. Humphrey visual field 24-2 OS only: Good reliability. Dense superior hemifield loss. Inferior arcuate defect.

Humphrey Visual field 2402, leftr eye. Dense superior hemifield loss with inferior arcuate defect


There was little doubt that the IOP was too high in his better-seeing eye on maximum tolerated medical therapy, including oral acetazolamide. Given his history of pathologic myopia and recurrent erosions of both his scleral buckle and tube, he was felt to be at high risk for complication with traditional incisional glaucoma surgery. As such, we recommended minimally-invasive glaucoma surgery (MIGS) to spare the conjunctiva, along with phacoemulsification improve vision and maximize his IOP reduction. While many MIGS modalities could be successful in his case, we recommend ab Interno canaloplasty (ABiC), primarily to avoid the impact a potentially protracted hyphema from GATT could have on his activities of daily living given his monocular status. After extensive discussion, the patient agreed to proceed, understanding that further incisional surgery could prove necessary if ABiC were not able to be completed safely or failed to adequately lower his pressure. The narrated recording of this surgery can be seen in Video 1.

Video 1: Ab Interno Canaloplasty. Daniel I Bettis, Jason Kam


Table 1. This table outlines the visual acuity and IOP of the post-operative visits for the left eye. On post-operative day 1, there were 3+ RBCs (red blood cells) and a small (<1mm clot inferiorly) with an IOP spike (likely from retained viscoelastic). IOP goal was low teens.

Visual Acuity

Visual Acuity Pin hole


Anti-Glaucoma Medications


Pre Operative

20/50 sc
(without correction)



Oral acetazolamide


Day 1

20/400 sc




3+ RBC
with small clot

Week 1

20/40 sc




2+ RBC, 1+ WBC,
no clot/layering

Week 2

20/40 sc




Rare cell,
no hyphema

Week 3

20/30 sc




Deep and quiet

Week 4

20/40 -2 sc




Deep and quiet

Week 8

20/25 -2 cc
(with correction)




Deep and quiet


Numerous clinical studies have suggested that traditional canaloplasty may be as effective as trabeculectomy at lowering IOP, with a favorable safety profile (1-5). Canaloplasty has several advantages, including its minimally-invasive nature, lack of permanent fistula or bleb, and effective IOP control in patients with mild to moderate open angle glaucoma. This surgery accesses, catheterizes and viscodilates all aspects of the outflow resistance including the trabecular meshwork (TM), Schlemm's canal, and collector channels (6).

ABiC combines the IOP lowering effect of traditional ab externo canaloplasty with a newer ab interno approach achieved under direct gonioscopic visualization. Similar to the traditional approach, the ab interno approach circumferentially catheterizes 360 degrees of Schlemm's canal with the Ellex iTrack illuminated microcatheter. Combined with viscodilation utilizing a viscoadaptive ophthalmic viscosurgical device, this procedure breaks adhesions within the canal, stretches the TM and possibly creates microperforations within the inner wall of the TM (7). This allows the eye's natural outflow system to be restored to the physiologic state instead of creating a bypass route. The initial entry into the eye and canal differ with the ab interno approach by creating a clear corneal incision and a small 1-2 clock hour goniotomy in the nasal angle under direct gonioscopic visualization. In contrast, traditional canaloplasty requires conjunctival dissection and formation of a partial thickness scleral flap to unroof Schlemm's canal. It then often utilizes a 9-0 or 10-0 Prolene tension suture to keep Schlemm's canal under tension and therefore patent. No sutures are required in the ab interno approach. Furthermore, ABiC allows the surgeon to avoid incising conjunctiva and dissecting a scleral flap, theoretically increasing the ease and success of potential future incisional glaucoma surgeries. So while it is true that ab externo canaloplasty is perhaps less invasive than trabeculectomy or tube shunt surgery, ABiC seems more fitting to be considered minimally-invasive glaucoma surgery.

As seen in our video (Video 1), the procedure is currently most easily performed using a flexible illuminated microcatheter through a clear corneal incision. One feature to look for during the operation is episcleral venous blanching during the viscodilation, which indicates an open collector channel system (8).

Safety Profile and Complications

Potential intra-operative complications reported with ab externo canaloplasty include inability to cannulate Schlemm's canal, Descemet membrane detachment, and improper microcatheter passage [1,2,9,10]. Post-operatively, this procedure can result in hyphema, cataract formation, IOP spikes and/or hypotony. No choroidal detachments, suprachoroidal hemorrhages, blebitis or bleb-associated endophthalmitis have been reported [11].  Contraindications to ab interno canaloplasty might be similar to those for GATT, proposed by Grover et al. [12]. These include an unstable intraocular lens, inability to identify angle structures, a closed angle, or severe corneal endothelial compromise. Relative contraindications are prior corneal transplantation or inability to elevate the head 30 degrees for the first 1-2 weeks after surgery. Unlike GATT, one might be able to consider this procedure in patients who are unable to stop anticoagulation or are prone to bleeding, since the meshwork is only dilated instead of torn circumferentially. As such, the primary risk for hyphema results from creation of the nasal goniotomy.

Published Results

Table 2. Mark J. Gallardo, MD (El Paso Eye Surgeons, PA) and Mahmoud A. Khaimi (Dean McGee Eye Institute, OK) ab-interno canaloplasty all eyes [13]



Median IOP (mm Hg)  ± SD

Median Medication (n)  ±-SD

Maximum recorded IOP


21.0 ± 5.4

2.0 ± 1.0

Baseline IOP


18.0 ± 6.6

2.0 ± 1.0

1 month


16.0 ± 5.2

0 ± 0.6

3 months


15.0 ±4.5

0 ± 1.0

6 months


14.5 ± 2.7

0.00 ±1.0


Table 3. Mark J. Gallardo, MD (El Paso Eye Surgeons, PA) and Mahmoud A. Khaimi (Dean McGee Eye Institute, OK) Ab-interno canaloplasty with cataract surgery [13]



Median IOP (mm Hg) ±  SD

Median Medication (n)  ± SD

Maximum recorded IOP


21.0 ± 5.6

2.0 ± 1.0

Baseline IOP


17.5  ± 5.1

2.0  ± 1.0

1 month


14.0  ± 4.1

0.00  ± 0.3

3 months


14.0  ± 3.7

0.00  ± 1.0

6 months


12.0  ± 2.6

0.00  ± 0.0

Published case series for ABiC are sparse in the literature as of 2016, the largest having been published by Gallardo and Khaimi. Of 106 patients treated, there was an average IOP decrease of 35% and a 100% drop in glaucoma medications. With combination of cataract surgery, the drop in IOP was 38.4% at 6 months.

Early clinical evidence indicates that ABiC is safe and effective in mild to-moderate POAG with similar IOP-lowering effects compared to traditional canaloplasty. Unlike other MIGS procedures, the viscodilation that accompanies ABiC ensures that all known potential "blockages" in the ocular outflow pathway are addressed, including the ostia of the collector channels.


This case represents the use of an angle-based glaucoma surgery for the treatment of a 59-year-old patient with open-angle glaucoma and granulomatosis with polyangiitis. His results support the effectiveness and relative safety of this therapy. Ab-interno canaloplasty provides the advantage of sparing the conjunctiva for potential future interventions while opening access to Schlemm's canal for 360 degrees, especially in patients who will have high visual demands soon after surgery (and are thus unlikely to tolerate moderate to severe post-operative hyphema with GATT), who are unable to safely stop anticoagulants, or who have known bleeding diatheses.


Refractory primary open-angle glaucoma treated with Ab interno Canaloplasty (ABiC)


  • Medically-uncontrolled primary or secondary open-angle glaucoma
  • Can be performed with or without concurrent cataract surgery


  • Unstable intraocular lens
  • Inability to identify angle structures
  • Chronically closed iridocorneal angle/Angle closure glaucoma
  • Severe corneal endothelial compromise


  • Transient hyphema (mild)
  • Early IOP spike secondary to retained viscoelastic in Schlemm's Canal
  • Subsequent steroid-Induced elevation of IOP
  • Cataract formation

Efficacy [13]

  • Mean IOP decrease of 7.5 mmHg (35%) with 2 (100%) fewer glaucoma medications used at 6 months in patients undergoing ABiC alone
  • Mean IOP decrease of 9 mmHg (38.4%) with 2 (100%) fewer glaucoma medications used at 6 months in patients undergoing ABiC with phacoemulsification
  1. Lewis RA, von Wolff K, Tetz M, et al. Canaloplasty: three-year results of circumferential viscodilation and tensioning of Schlemm's canal using a microcatheter to treat open-angle glaucoma. J Cataract Refract Surg. 2011; 37:682-690.
  2. Bull H, von Wolff K, Korger N, Tetz M. Three-year canaloplasty outcomes for the treatment of open-angle glaucoma: European study results. Graefes Arch Clin Exp Ophthalmol. 2011; 249:1537-1545.
  3. Grieshaber MC, Fraenkl S, Schoetzau A, et al. Circumferential viscocanalostomy and suture canal distension (canaloplasty) for whites with open-angle glaucoma. J Glaucoma. 2011; 20:298-302.
  4. Peckar CO, Körber N. Canaloplasty for open angle glaucoma: a three years critical evaluation and comparison with viscocanalostomy [in German]. Spektrum der Augenheilkunde. 2008; 22(4):240-246.
  5. Brüggemann A, Despouy JT, Wegent A, Müller M. Intraindividual comparison of canaloplasty versus trabeculectomy with mitomycin C in a single-surgeon series. J Glaucoma. 2013; 22(7):577-583.
  6. Klink T, Sauer J, Körber NJ, et al. Quality of life following glaucoma surgery: canaloplasty versus trabeculectomy. Clin Ophthalmol. 2014; 18(9):7-16.
  7. Khaimi MA. Canaloplasty: A Minimally Invasive and Maximally Effective Glaucoma Treatment. Journal of Ophthalmology. 2015; 2015:Article ID 485065, 5 pages. doi:10.1155/2015/485065
  8. Fellman RL, Grover DS. Episcleral venous fluid wave: intraoperative evidence for patency of the conventional outflow system. J Glaucoma. 2014; 23(6): 347-50.
  9. Palmiero P-M, Aktas Z, Lee O, Tello C, Sbeity Z, Bilateral Descemet membrane detachment after canaloplasty. J Cataract Refract Surg 2010; 36(3): 508–511.
  10. Jaramillo A, Foreman J., Ayyala RS. Descemet membrane detachment after canaloplasty: incidence and management. J Glaucoma, 2014; 23(6): 351–354.
  11. Harvey BJ, Khaimi MA. A review of canaloplasty. Saudi J Ophthalmol. 2011; 25(4): 329-336.
  12. Grover DS, Godfrey DG, Smith O, et al. Gonioscopy-assisted transluminal trabeculotomy, ab interno trabeculotomy: technique report and preliminary results. Ophthalmology. 2014; 121:855–861.
  13. Ellex iScience. Ab-Interno Canaloplasty-A Comprehensive Minimally Invasive Glaucoma Surgery. White Paper: 2015. 4p. Available from:
