Orbital Compartment Syndrome Curriculum

Heather A. Stiff, MD; Anthony T. Chung, MD; Matthew Benage, MD; Ben J. Janson, MD; Austin R. Fox, MD; Thomas A. Oetting, MD; Erin M. Shriver, MD

Objectives

  • Identify orbital and eyelid anatomy associated with orbital compartment syndrome and lateral canthotomy/cantholysis.
  • Describe the signs of orbital compartment syndrome and evaluation for lateral canthotomy/cantholysis.
  • Describe the steps of lateral canthotomy/cantholysis

Sections

Initial posting date: May 24, 2018

Orbital Anatomy

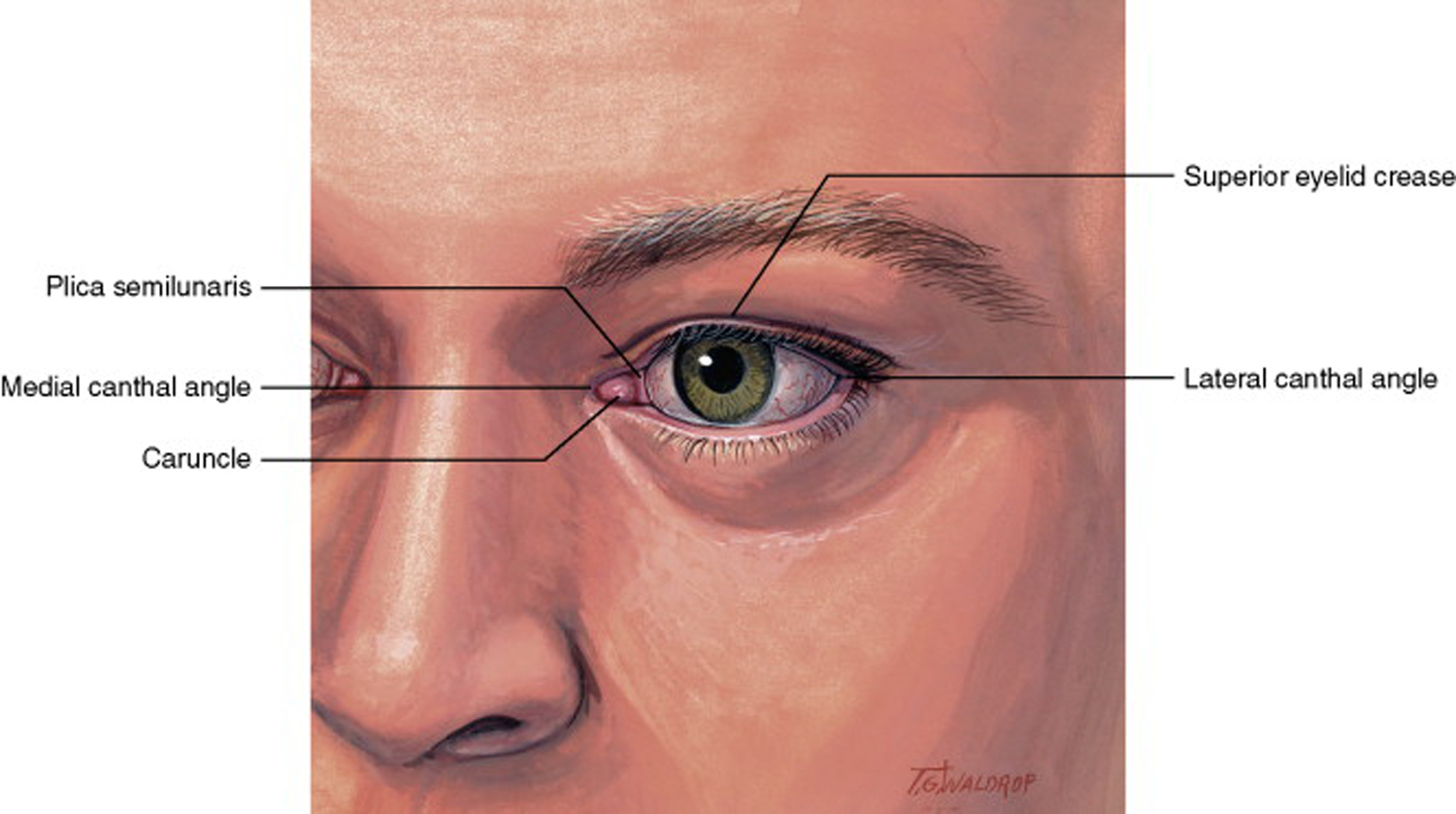

External eyelid anatomy with the lateral canthal angle at the point where the upper and lower eyelids meet. (Reprinted with permission from Elsevier.)

Figure 1: External eyelid anatomy with the lateral canthal angle at the point where the upper and lower eyelids meet. (Reprinted with permission from Elsevier.) [1]

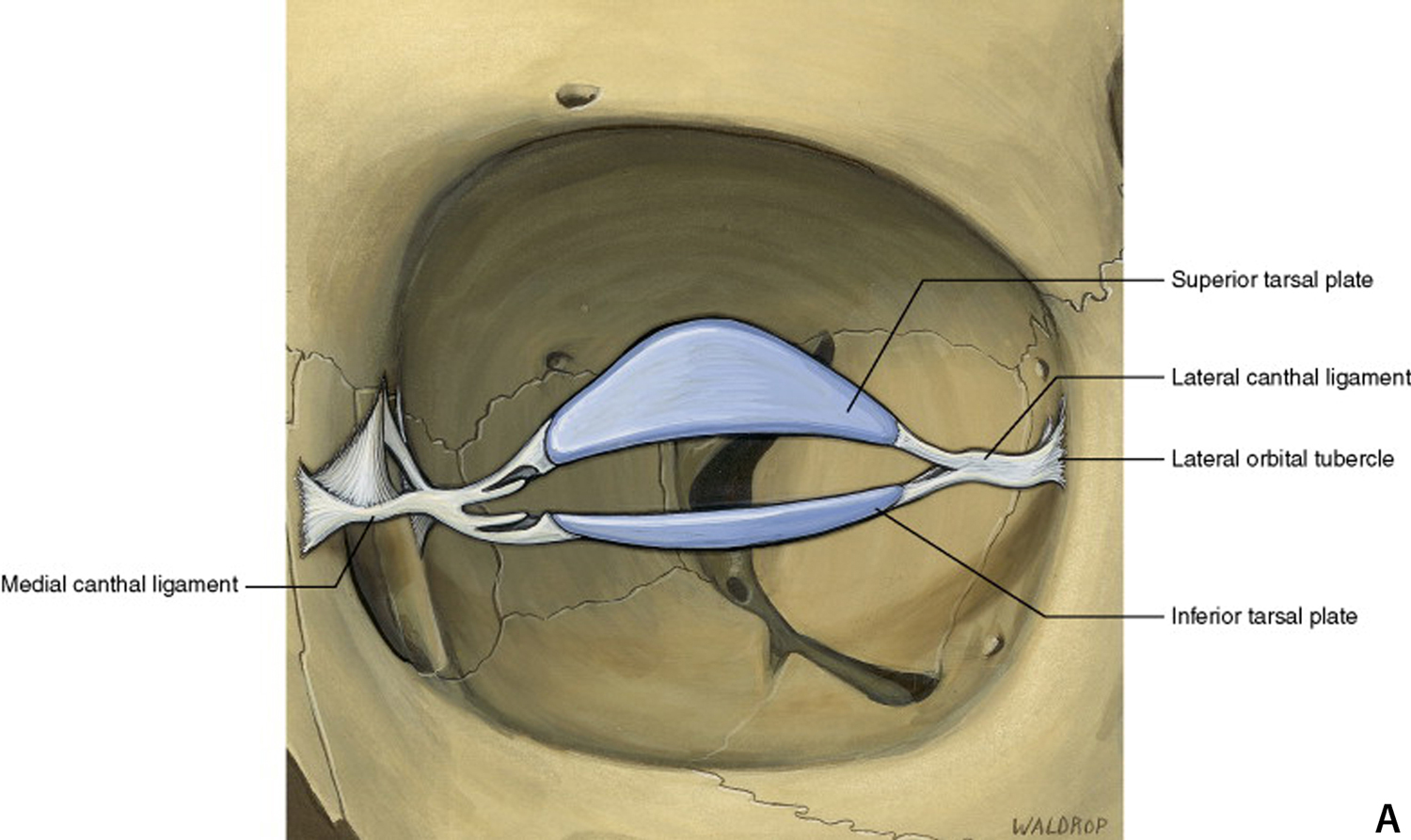

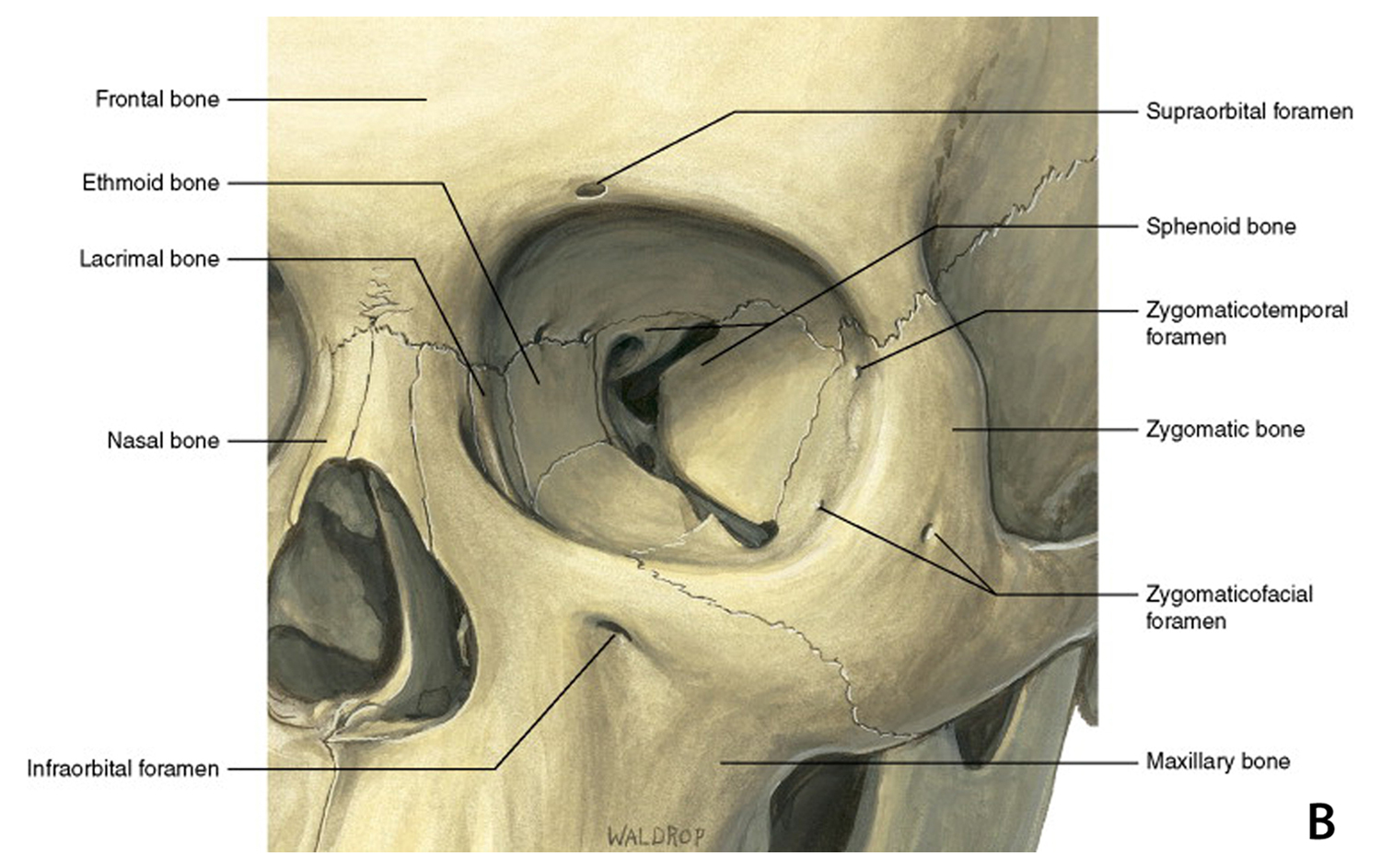

Lateral canthal tendon attaches the the tarsal plates of the eyelid to the periosteum at the lateral orbital tubercle. The orbital compartment is a closed compartment and the walls are comprised of 7 bones, including the ethmoid, lacrimal, sphenoid, frontal, maxillary, zygomatic, and palatine bones. (Reprinted with permission from Elsevier.)

Lateral canthal tendon attaches the the tarsal plates of the eyelid to the periosteum at the lateral orbital tubercle. The orbital compartment is a closed compartment and the walls are comprised of 7 bones, including the ethmoid, lacrimal, sphenoid, frontal, maxillary, zygomatic, and palatine bones. (Reprinted with permission from Elsevier.)

Figure 2a,b: Lateral canthal tendon attaches the tarsal plates of the eyelid to the periosteum at the lateral orbital tubercle. The orbital compartment is a closed compartment and the walls are comprised of 7 bones, including the ethmoid, lacrimal, sphenoid, frontal, maxillary, zygomatic, and palatine bones. (Reprinted with permission from Elsevier.) [1]

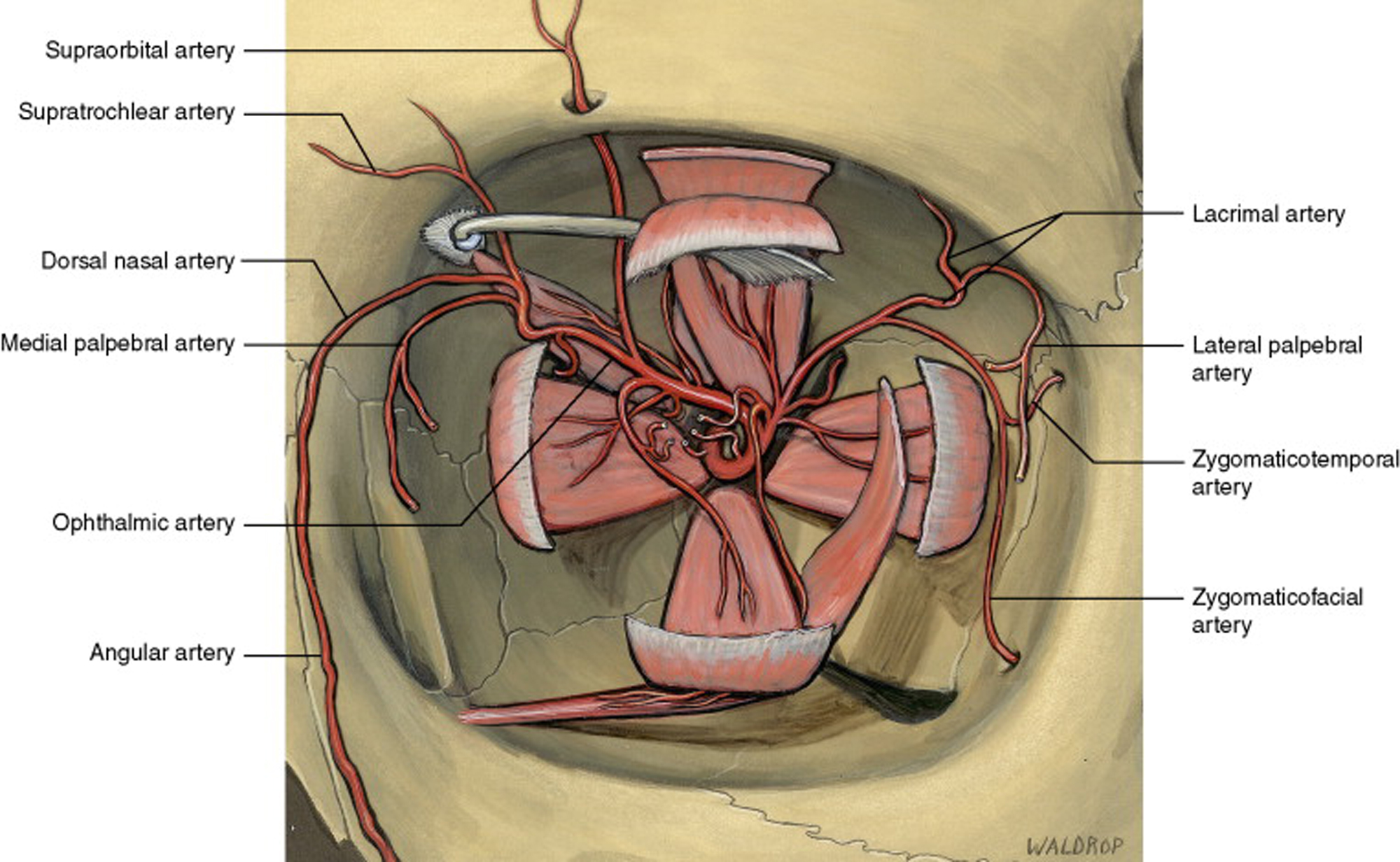

Orbital arteries, without and with extraocular muscles The primary blood supply to the orbit comes from the ophthalmic artery. The ophthalmic artery is a branch of the internal carotid artery and has many branches to supply the ocular tissue, optic nerve, and the orbit.
(Reprinted with permission from Elsevier.)

Figure 3: Orbital arteries with extraocular muscles. The primary blood supply to the orbit comes from the ophthalmic artery. The ophthalmic artery is a branch of the internal carotid artery and has many branches to supply the ocular tissue, optic nerve, and the orbit. (Reprinted with permission from Elsevier.) [1]

Evaluation for Canthotomy/Cantholysis

Orbital compartment syndrome refers to a situation in which an expansile process within the closed compartment of the orbit leads to increased orbital pressure, which can further lead to ischemia and vision loss. The diagnosis of orbital compartment syndrome is made based on clinical findings and should be suspected in patients presenting with the following constellation of symptoms: acute proptosis, elevated intraocular pressure (35-40 mmHg), rapid vision loss, ophthalmoplegia, and fixed dilated pupils or a relative afferent pupillary defect (RAPD).

Orbital compartment syndrome requires immediate treatment to prevent permanent vision loss. Time to intervention should be within 90-120 min from injury to prevent vision loss (based on primate studies) [2].

Etiology

Any expansile process within the orbit can lead to orbital compartment syndrome. These include:

  • Retrobulbar hemorrhage
    • Trauma
    • Vascular malformations/tumors
  • Cellulitis/infection
  • Extravasation of dyes/contrast/fluid (burn)
  • Orbital malignancy
  • Orbital surgery
    • Increased risk with anticoagulant use and/or bleeding disorders

Pathophysiology

  • Increased orbital pressure causes anterior displacement of the globe →
  • Anterior displacement of the globe is limited by the eyelid complex which is anchored to the orbital rim by the lateral and medial canthal tendons→
  • The orbit follows pressure-volume dynamics similar to other compartment syndromes: Increased tissue pressure in an enclosed space leads to decreased perfusion.  When the intraorbital pressure exceeds arterial pressure supplying the optic nerve and retina,  ischemia results.
    • The central retinal artery may have some protection from direct compression because of its anatomic position within the optic nerve and because of its higher systolic pressure, but it is still at risk for compression in orbital compartment syndrome
    • Lower pressure capillaries and the posterior ciliary arteries, which enter the eye around the optic nerve, are afforded no such protection and ischemia of these vessels leads to vision loss due to ischemic optic neuropathy
  • Stretching of the optic nerve and vessels can also result in vision loss.

Signs of orbital compartment syndrome

  • Elevated intraocular pressure (>35mmHg)
  • Decreased vision
  • Relative afferent pupillary defect or a fixed, dilated pupil
  • Restricted extraocular motility (ophthalmoplegia)
  • Acute proptosis with taut lids
  • Computed Tomography (CT) Scan: globe tenting, proptosis, presence of retro-orbital hemorrhage/edema/or mass lesions

Assessing for signs of orbital compartment syndrome

  • Relative afferent pupillary defect - https://youtu.be/HSYo7LhfV3A
  • Elevated intraocular pressure (IOP) – typically measured with a Tonopen®
    • Desmarres retractors aid in opening eyelids without applying pressure to the eye when there is significant swelling

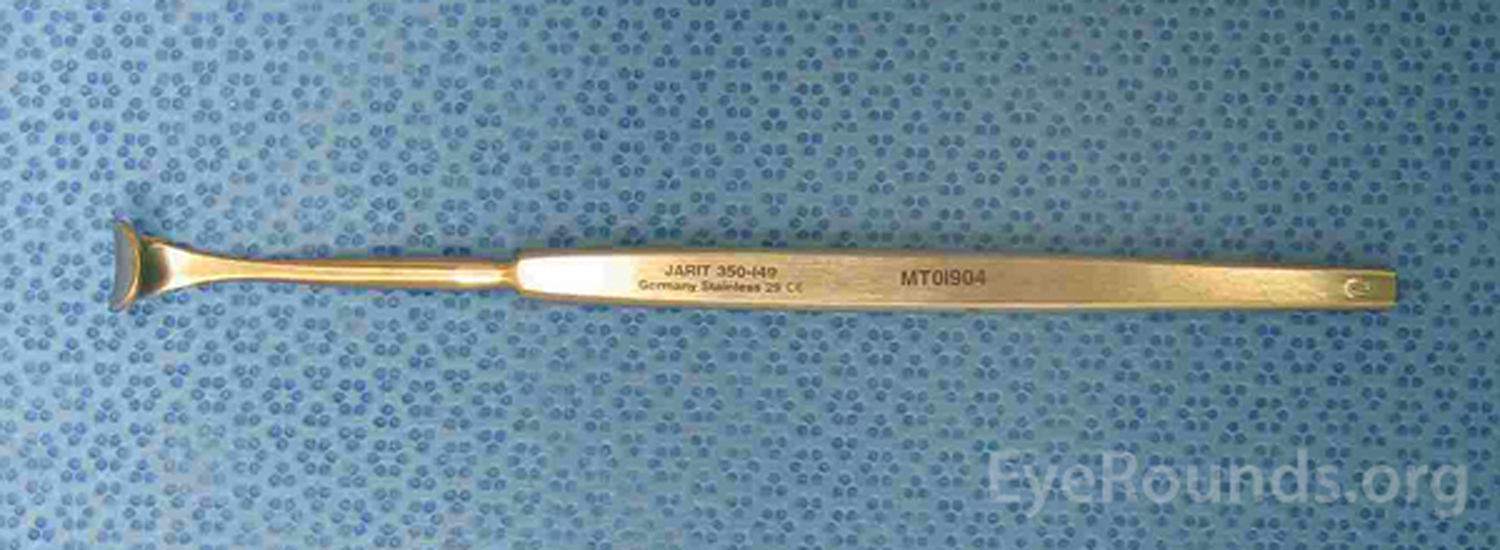

Desmarres lid retractor

Figure 4: Desmarres lid retractor. Used with permission from www.eyerounds.org/tutorials/instruments/General/index.htm [4]

Symptoms of orbital compartment syndrome

  • Acute onset vision loss
  • Decreased ocular motility
  • Double vision
  • Orbital and/or ocular pain

Lateral canthotomy/cantholysis

  • Goal: To disinsert lateral canthal ligaments from the orbital rim in order to allow anterior displacement of the globe, leading to a reduction in intraorbital pressure and a return of optic nerve and retinal circulation
  • Steps:
    • Assess the status of the affected eye. Generally, lateral cantholomy/cantholysis are contraindicated when the eye is lacerated or ruptured. If the eye is intact, proceed with lateral canthotomy/cantholysis.
    • Apply local anesthetic (Commonly lidocaine 2% with epinephrine 1:100,000)
    • Clean, Sterilize (i.e.Povidine-iodine), and drape the eye and lateral canthal area
    • Use non-dominant hand to hold traction on the lateral eyelids
    • Use scissors (Utility, Stevens or Westcott) to create canthotomy at the lateral orbital rim
    • Use forceps to apply downward traction on lower lid
    • Use scissors to perform inferior cantholysis - palpate and "strum" the inferior crus of the lateral canthal tendon and cut
    • Recheck pressure
    • If inferior cantholysis is insufficient, consider release of the superior crus in a similar manner as the inferior crus was released. Care should be taken to avoid the lacrimal gland and its ductules.

Watch video from eyerounds [3]: https://youtu.be/R8QuwrMHBL0

References

  1. Dutton, Jonathon, Atlas of Clinical and Surgical Orbital Anatomy; The Eyelids and Anterior Orbit. Elseveier (2nd edition), 2011. Chapter 8, pp 129-164, figures 8-1, 8-5, 8-8, 8-16; Chapter 2, pp 15-27, figure 2-1; Chapter 5, pp 83-98, figure 5-1, 5-2.
  2. Hayreh SS, Kolder HE, Weingeist TA. Central retinal artery occlusion and retinal tolerance time. Ophthalmology. 1980;87:75–8.
  3. Rixen, Jordan, et al. "Lateral Canthotomy and Cantholysis." Lateral Canthotomy, Inferior Cantholysis. EyeRounds: The University of Iowa, Ophthalmology, 12 Mar. 2013, http://EyeRounds.org/tutorials/lateral-canthotomy-cantholysis.htm
  4. Dinn, Robert. "General Ophthalmology Tray". EyeRounds: The University of Iowa, Ophthalmology, 12 Mar. 2007, http://EyeRounds.org/tutorials/instruments/General/index.htm.
  5. Tse DT. A Simple Maneuver to Reposit a Subluxed Globe. Arch Ophthalmol. 2000;118(3):410–411.
