Cogan-Reese Syndrome: A Rare Case of Unilateral Glaucoma

Authors: Nayasha Madhan, BS; Brittni A. Scruggs, MD, PhD; P. Christi Carter, MD; Jacob Melendrez, MD; Daniel I. Bettis, MD

Posted July 20, 2018

INITIAL PRESENTATION

Chief Complaint

"The vision is blurry in my left eye."

History of Present Illness

A 69-year-old woman presented to the University of Iowa Hospitals and Clinics (UIHC) glaucoma clinic for evaluation of decreased vision in the left eye (OS) in the setting of elevated intraocular pressure (IOP) OS.  Three weeks prior to her presentation at UIHC, she presented to her local optometrist for evaluation of blurring of her vision OS.  At that visit, her IOP was 57 mmHg, and there was evidence of anterior chamber inflammation. Medical therapy was initiated with oral and topical aqueous suppressants, topical steroid drops, and a cycloplegic agent.  Unfortunately, her IOP remained elevated; thus, she was referred to UIHC for further evaluation and management.

Past Ocular History

  • History of blunt trauma OS from a softball 36 years prior
  • Mild hyperopia with mild astigmatism, both eyes (OU)
  • Presbyopia OU

Past Medical History

  • Hypertension
  • Diverticulitis
  • Kidney stones
  • Osteoarthritis

Ocular Medications

  • Acetazolamide 500mg twice per day (BID) by mouth (PO)
  • Timolol XE BID OS
  • Atropine BID OS
  • Prednisolone acetate 1% BID OS

Systemic Medications

  • Aspirin
  • Ibuprofen as needed (PRN)

Allergies

Penicillin G (hives)

Family History

No family history of glaucoma

Social History

Former smoker (quit 30 years prior)

Review of Systems

Negative except for pertinent positives listed in HPI

OCULAR EXAMINATION

Visual Acuity with correction (Snellen)

  • Right eye (OD): 20/15
  • Left eye (OS): 20/40

Ocular Motility/Alignment

  • OD: Full
  • OS: Full

Intraocular Pressure (IOP): (Tonopen)

  • OD: 9 mmHg
  • OS: 55 mmHg

Pupils

  • OD: Brisk, reactive to light
  • OS: Sluggish to light and slightly irregular, 1.2 log unit (LU) relative afferent pupillary defect (RAPD)

Confrontation visual fields: (count fingers)

  • OD: Full
  • OS: Full

Slit lamp exam

  • Lids/lashes: Normal (OU)
  • Conjunctiva/sclera: White and quiet OU
  • Cornea:
    • OD: Clear
    • OS: Moderate stromal edema with pigmented deposits on endothelium, most prominent inferiorly; diffuse epitheliopathy
  • Anterior chamber: Deep and quiet OU
  • Iris:
    • OD: Normal
    • OS: Multiple fine iris nodules distributed over the inferior 180 degrees; central posterior synechiae present inferiorly
  • Lens:
    • OD: Trace nuclear sclerosis
    • OS: 2+ nuclear sclerosis

Dilated fundus examination (DFE)

  • Vitreous: Normal OU
  • Disc: Normal OU
  • Cup-to-disc ratio:
    • OD: 0.4
    • OS: 0.7
  • Macula: Normal OU
  • Vessels: Normal OU
  • Periphery: Normal OU

Gonioscopy

  • OD: Normal
  • OS: Nearly 360 degrees of angle closure with high peripheral anterior synechiae; no angle recession seen

ADDITIONAL TESTING

Central 24-2 Humphrey Visual Fields (Figure 1)

  • OD: Scattered non-specific depression
    • Mean deviation: -3.08dB
    • Pattern standard deviation: 2.54dB
  • OS: Superior and inferior arcuate visual field defects
    • Mean deviation: -21.56dB
    • Pattern standard deviation: 8.99dB

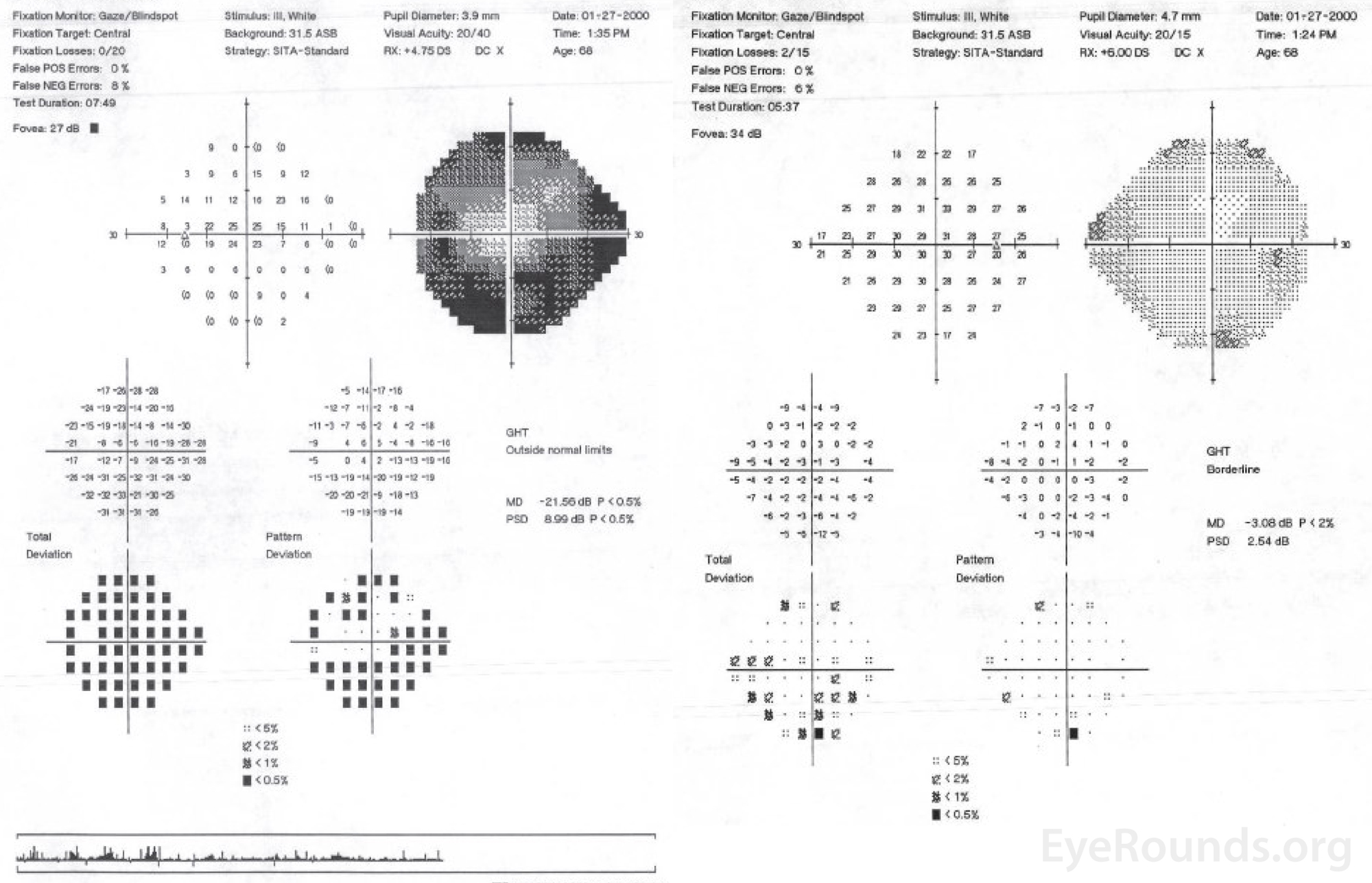

Central 24-2 Humphrey visual field, OU. OD (right HVF): Scattered non-specific depression, otherwise full. OS (left HVF): Dense superior and inferior arcuate loss with significant generalized depression.

Figure 1. Central 24-2 Humphrey visual field, OU. OD (right HVF): Scattered non-specific depression, otherwise full. OS (left HVF): Dense superior and inferior arcuate loss with significant generalized depression.

Differential Diagnosis for Unilateral Iris Changes

CLINICAL COURSE

At the initial visit at UIHC, brimonidine TID OS was added to the patient's drop regimen. Iridocorneal endothelial syndrome was suspected given the presence of unilateral glaucoma with iris nodules and signs of synechial angle closure. The decision was made to proceed with surgery given the persistently elevated IOP. Pre-operatively, the patient was given mannitol due to her severely elevated IOP. She underwent an uncomplicated trabeculectomy, and her intraocular pressure was 14mmHg on post-op day (POD) 1. She was discharged on prednisolone acetate 1%, atropine, and Tobradex ointment. At her appointment 10 weeks after surgery, visual acuity had improved to 20/30+2. She continued to have ectropion uveae, iris nevi, and pigment visible on the anterior capsule, but was stable with an IOP under 21 mmHg off all drops.

Three years after her initial trabeculectomy, the patient underwent phacoemulsification of a cataract in her left eye with intraocular lens placement at an outside institution. On POD1, she was noted to have an IOP of 27 mmHg; the IOP increased to 34 mmHg on POD3. She was started on brimonidine, latanoprost, and acetazolamide with subsequent fall of her IOP to 18 mmHg a week later. Her pressure subsequently spiked to 50 mmHg with discontinuation of acetazolamide. Acetazolamide was restarted, and timolol and prednisolone forte were added. The patient was referred back to UIHC, at which time her IOP was 20 mmHg OS, and she had a small relative afferent pupillary defect in the left eye. Visual acuity remained 20/20 in both eyes. Given her history of kidney stones, the acetazolamide was discontinued, and the patient was trialed on topical timolol-dorzolamide and oral acyclovir.  Over the next two weeks, the patient's vision deteriorated. The IOP increased to 42 mmHg OS, and she developed corneal edema and bullae OS. Given her persistently elevated pressures and signs of corneal decompensation, the patient underwent a repeat trabeculectomy. This resulted in well-controlled IOPs off drops.

Over a year later, the patient was seen for a spike in her IOP to 38mmHg OS with accompanying blurred vision and pain OS. Humphrey visual fields showed substantial worsening from prior fields (Figure 2). Given uncontrolled IOP and worsening visual field deficits in the left eye, a Baerveldt seton implant was placed along with a surgical sector iridectomy to prevent any ICE-associated membranes from pulling the tube forward (Figure 3). On POD 1, her visual acuity was reduced to hand motions at 3 feet with an IOP of 30 mmHg OS and with a 1mm layered hyphema. Her visual acuity improved substantially over time, and at 6 weeks she was 20/30 with an IOP of 6mmHg OS. Two years later, her cornea showed further decompensation, which ultimately required a descemet stripping automated endothelial keratoplasty (DSAEK).

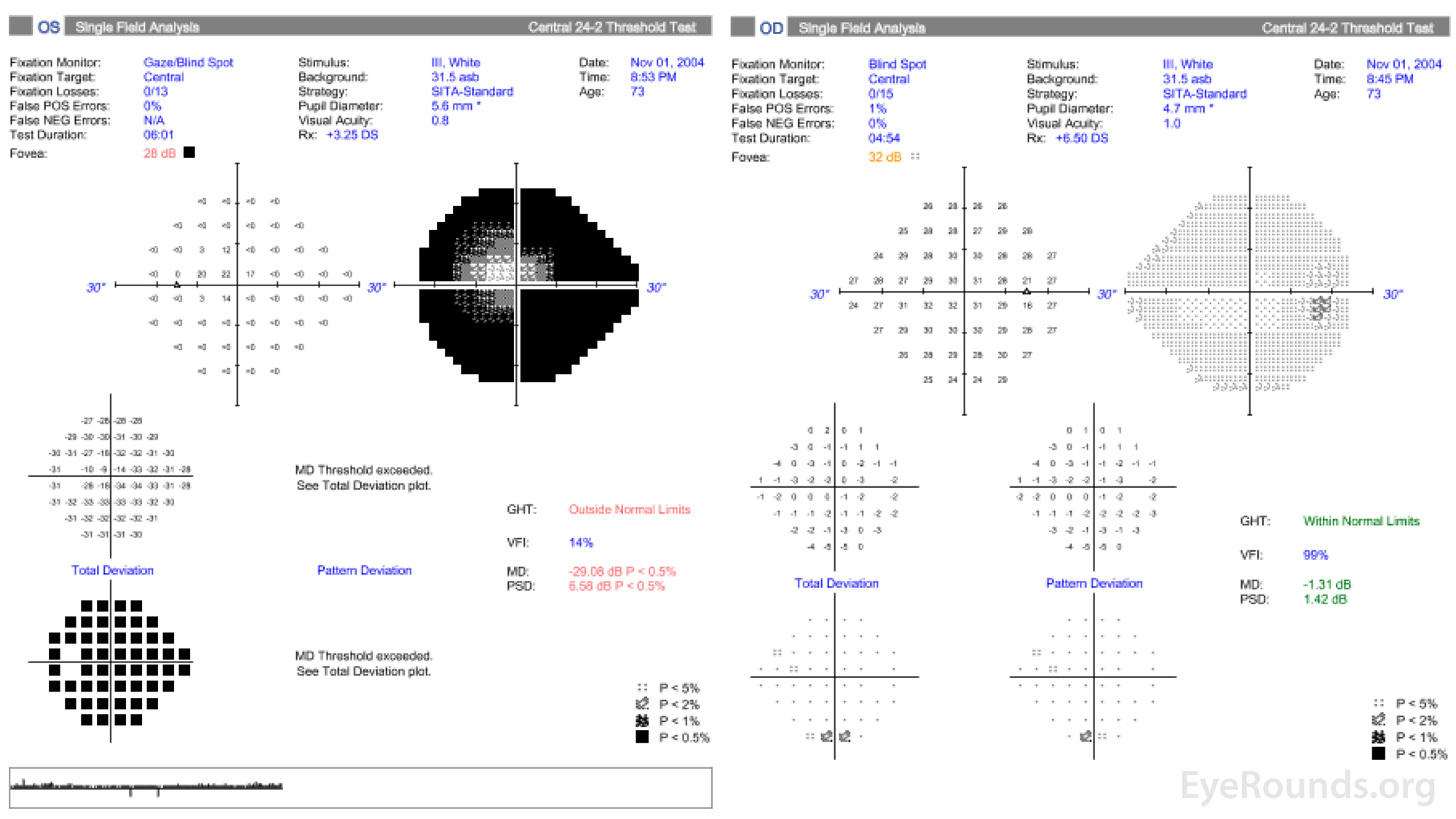

Central 24-2 Humphrey visual field, OU. OD (right HVF): Scattered non-specific depression, otherwise full. OS (left HVF): Dense superior and inferior arcuate loss with significant generalized depression. These visual fields represent a significant worsening OS despite having two prior trabeculectomies.

Figure 2. Central 24-2 Humphrey visual field, OU. OD (right HVF): Scattered non-specific depression, otherwise full. OS (left HVF): Dense superior and inferior arcuate loss with significant generalized depression. These visual fields represent a significant worsening OS despite having two prior trabeculectomies.

Slit lamp photography, OU. A: Slit lamp photo of the right eye shows no corneal or iris abnormalities. B: Slit lamp photo of the left eye shows corneal clouding secondary to diffuse stromal edema and bullous keratopathy. Multiple fine nodules distributed over the inferior 180 degrees; see Figure 4 for higher magnification of these nodules. Superotemporal Baerveldt seton with underlying surgical sector iridectomy in addition to avascular blebs superiorly and temporally from prior trabeculectomies. The patient was pseudophakic OU.

Figure 3. Slit lamp photography, OU. A: Slit lamp photo of the right eye shows no corneal or iris abnormalities. B: Slit lamp photo of the left eye shows corneal clouding secondary to diffuse stromal edema and bullous keratopathy. Multiple fine nodules distributed over the inferior 180 degrees; see Figure 4 for higher magnification of these nodules. Superotemporal Baerveldt seton with underlying surgical sector iridectomy in addition to avascular blebs superiorly and temporally from prior trabeculectomies. The patient was pseudophakic OU.

Slit lamp photography, OS. A. The patient had a "beaten metal" appearance of the corneal endothelium, which is classically seen in ICE syndromes. B. Consistent with Cogan-Reese syndrome, there were multiple fine nodules (arrow) distributed over the inferior 180 degrees of the iris. C. There were prominent descemet's folds with diffuse epitheliopathy. D. There was 2+ stromal edema with multiple bullae and 3+ microcystic edema throughout cornea. The patient had further corneal decompensation and underwent descemet stripping automated endothelial keratoplasty 1 month after these photos were taken.

Figure 4. Slit lamp photography, OS. A. The patient had a "beaten metal" appearance of the corneal endothelium, which is classically seen in ICE syndromes. B. Consistent with Cogan-Reese syndrome, there were multiple fine nodules (arrow) distributed over the inferior 180 degrees of the iris. C. There were prominent descemet's folds with diffuse epitheliopathy. D. There was 2+ stromal edema with multiple bullae and 3+ microcystic edema throughout cornea. The patient had further corneal decompensation and underwent descemet stripping automated endothelial keratoplasty 1 month after these photos were taken.

DIAGNOSIS

Cogan-Reese Syndrome

DISCUSSION

Iridocorneal endothelial (ICE) syndrome is characterized by unilateral abnormal proliferation of the corneal endothelium, corneal edema, and peripheral anterior synechiae (PAS). Cogan-Reese syndrome, also known as iris nevus syndrome, is a very rare disease that is considered one of the three variations of ICE syndrome [1]; the other two ICE variants are Chandler's syndrome and Essential Iris Atrophy. All three disease entities are difficult to treat given their progressive nature and the obliteration of the iridocorneal angle that leads to refractory elevation in IOP.  Similar to our patient, many affected individuals require multiple glaucoma procedures to normalize IOP, in addition to corneal endothelial keratoplasty (EK) to address the significant corneal decompensation.

Epidemiology

Cogan-Reese syndrome most often presents between the ages of 20 and 50 years, and it is more common in women.  All ICE syndromes are sporadic with no known family history of similar processes. Cogan-Reese is estimated to account for fewer than 10% of all ICE cases [2] with progressive iris atrophy and Chandler syndrome making up the majority of cases. ICE syndrome is unilateral in approximately >90% of affected patients [2], and the ICE variants are not associated with systemic disease.

Pathophysiology

The definitive mechanism of Cogan-Reese syndrome is unknown. However, polymerase chain reaction (PCR) analysis of the abnormal corneal endothelium in Cogan-Reese patients has demonstrated viral DNA. Herpes Simplex Virus has been found in a substantial number of patients with ICE syndrome yet is absent in normal corneal endothelium [3].  The proposed mechanism for the endothelium alteration in ICE syndrome is a shift in phenotype towards epithelial cells [4]. The dysregulation and metaplasia of the corneal endothelial cells are likely due to the downregulation of cell cycle regulators, specifically cyclin dependent kinases, in the corneal endothelium [5].  The abnormal endothelial cells in ICE syndrome are thought to have a toxic effect on neighboring healthy cells, thus explaining the progressive nature of the disease [6]. These abnormal endothelial cells migrate and ultimately obstruct the trabecular meshwork, thus causing high PAS and/or secondary angle-closure glaucoma; they also proliferate along the iris leading to iris thickening and color changes (Figure 4B).

Signs/Symptoms

The corneal endothelium in ICE syndrome is typically described as "hammered silver" or "beaten bronze" in appearance when viewed through the slit lamp using specular reflection (Figure 4A) [7]. Secondary, unilateral angle-closure glaucoma can occur in these patients because of the occlusion of the trabecular meshwork by the abnormal endothelial proliferation or PAS [4]. Cogan-Reese syndrome is unique among the ICE syndromes due to the presence of pedunculated, pigmented iris nodules, commonly referred to as iris nevi [1]. The classic Cogan-Reese nodules, which result from melanocytic proliferation within the iris stroma, are present on the anterior surface of the iris, appear late in the disease, and become darker and larger over time [6]. While these nodules are typically described as diffuse, it is possible for only a segment of the iris to be affected. Loss of the normal iris crypts leads to a smooth-appearing iris. Additionally, eversion of the pupil (i.e., ectropion uveae) and heterochromia may be present [8].

Testing and Imaging

Making the diagnosis of an ICE syndrome is often challenging, as it can appear similar to other disease states, including posterior polymorphous corneal dystrophy. However, prompt diagnosis is important given the progressive nature and aggressive course of ICE. Specular microscopy is often helpful given the presence of "ICE cells" is pathognomonic. These cells are large, dark areas with a light center and light peripheral zone [6]. Histologically, these endothelial cells have epithelial features, such as microvilli and desmosomes [9]. In vivo confocal microscopy can also be used to detect the abnormal epithelioid-like endothelium. Gonioscopy of our patient was performed to better evaluate the iris and angle to determine the extent of secondary angle closure (Video 1). However, corneal edema often limits the view of the angle in Cogan-Reese syndrome, and such cases may benefit from the use of anterior segment optical coherence tomography (OCT) or ultrasound biomicroscopy to detect PAS or iridocorneal abnormalities [6].  Specific findings on anterior segment OCT that aid in detecting Cogan-Reese syndrome include increased iris thickness [10]. There may be utility in performing HSV PCR given this virus may contribute to the pathogenesis of the disease.

Treatment

Management of Cogan-Reese, similar to that of the other ICE syndromes, is aimed at slowing or preventing vision loss from secondary angle-closure glaucoma by lowering the patient's intraocular pressure. Although herpetic disease may contribute to the pathophysiology of ICE syndrome, there are no data showing the benefit of antivirals for the treatment of ICE [6]. Medical management involves the use of aqueous suppressants.  Unfortunately, this often fails to adequately control intraocular pressure due to progressive obstruction of the trabecular meshwork. A study of 200+ patients with ICE suggested that more than 50% of these patients require surgical intervention to control IOP [2]. Specifically, if medical management fails, a trabeculectomy or implanting a glaucoma drainage implant (GDI) should be pursued. Trabeculectomy is commonly performed, but the success rates are poor and many patients (12.5% to 53.8%) subsequently require a GDI [6, 7, 11]. The long-term outcome of the surgical treatment in ICE syndrome patients has been shown to be better in those with a GDI compared to a trabeculectomy [12], and this is likely due to the robust, post-trabeculectomy inflammatory response and the ICE cohort being relatively young [6]. Unfortunately, even surgical placement of a GDI leads to failure in approximately 20% of ICE patients; this is usually related to the filtering ostium becoming obstructed by continued growth of the proliferating endothelial membrane [6]. A sector iridectomy, which was performed at the time of GDI in our patient, should be considered in order to eliminate the tube being pulled or clogged by ICE-related membranes.

Corneal clarity is often compromised in Cogan-Reese patients. Hypertonic saline can be implemented in mild cases of corneal edema. However, if corneal decompensation is severe, endothelial keratoplasty (EK) or penetrating keratoplasty (PK) is required. A shallow anterior chamber, extensive PAS formation, and iris abnormalities may make graft positioning challenging for the EK surgeon [6]. It is estimated that 15% of patients with ICE syndrome will require keratoplasty [2], and a significant number of patients undergo repeat grafts due to high keratoplasty failure rates [13]. Comparing DSAEK vs. PK in ICE patients, two studies reported the rejection rates to be 33% vs. 79% [14, 15]; this suggests that EK surgery may be the favored procedure in Cogan-Reese. Several studies have demonstrated that pre-existing glaucoma surgery and ICE syndrome are both independent risk factors for descemet's stripping endothelial keratoplasty failure [14, 16, 17].

Summary

Cogan-Reese Syndrome is a rare iridocorneal endothelial syndrome that most commonly affects young- to middle-aged women. The patient may present with unilateral reduced vision, noticeable color changes to the iris, or unilateral secondary glaucoma due to corneal endothelium obstruction of the trabecular meshwork. The Cogan-Reese variant of the ICE syndromes is unique because of the pedunculated, pigmented nevi that present on the iris, in addition to the corneal edema, PAS, and ectropion uveae. The early identification of unilateral glaucoma should prompt a focused assessment for ICE syndrome, despite its unknown prevalence.

EPIDEMIOLOGY OR ETIOLOGY

  • Incidence unknown – rare disease
  • More common in women
  • Age presentation usually between 20 and 50 years
  • Usually unilateral presentation

SIGNS

  • Unilateral secondary angle closure glaucoma
  • Peripheral anterior synechiae on gonioscopy
  • Pedunculated pigmented iris nodules on anterior surface of iris
  • Abnormal "hammered silver" corneal endothelium seen with specular reflection of light
  • Corneal edema
  • Ectropion uveae
  • Heterochromia or other iris abnormalities (e.g., loss of crypts, atrophy, corectopia, etc.)

SYMPTOMS

  • Unilateral reduced vision
  • Unilateral pain
  • Diffuse or sectoral color changes of the iris
  • Glaucomatous visual field defects in late stages

TREATMENT/MANAGEMENT

  • Aqueous humor suppressants as a temporizing measure
  • Surgical trabeculectomy or a glaucoma drainage implant with surgical sector iridectomy
  • Corneal penetrating or endothelial keratoplasty
  • Multiple glaucoma surgeries and corneal keratoplasties are commonly required to control IOP and corneal clarity long-term

References

  1. Cogan DG, Reese AB. A syndrome of iris nodules, ectopic Descemet's membrane, and unilateral glaucoma. Doc Ophthalmol 1969;26:424-433.  https://PubMed.gov/5359536
  2. Chandran P, Rao HL, Mandal AK, Choudhari NS, Garudadri CS, Senthil S. Glaucoma associated with iridocorneal endothelial syndrome in 203 Indian subjects. PLoS One 2017;12(3):e0171884.  https://PubMed.gov/28282413. DOI: 10.1371/journal.pone.0171884
  3. Alvarado JA, Underwood JL, Green WR, Wu S, Murphy CG, Hwang DG, Moore TE, O'Day D. Detection of herpes simplex viral DNA in the iridocorneal endothelial syndrome. Arch Ophthalmol 1994;112(12):1601-1609.  https://PubMed.gov/7993217
  4. Levy SG, Kirkness CM, Moss J, Ficker L, McCartney AC. The histopathology of the iridocorneal-endothelial syndrome. Cornea 1996;15(1):46-54.  https://PubMed.gov/8907380
  5. Robert AM, Renard G, Robert L, Bourges JL. [The irido-corneo-endothelial syndrome. The loss of the control of corneal endothelial cell cycle. A review]. Pathol Biol (Paris) 2013;61(2):75-82.  https://PubMed.gov/23123109. DOI: 10.1016/j.patbio.2012.09.002
  6. Walkden A, Au L. Iridocorneal endothelial syndrome: clinical perspectives. Clin Ophthalmol 2018;12:657-664.  https://PubMed.gov/29670326. DOI: 10.2147/OPTH.S143132
  7. Laganowski HC, Kerr Muir MG, Hitchings RA. Glaucoma and the iridocorneal endothelial syndrome. Arch Ophthalmol 1992;110(3):346-350.  https://PubMed.gov/1543451
  8. Scheie HG, Yanoff M. Iris nevus (Cogan-Reese) syndrome. A cause of unilateral glaucoma. Arch Ophthalmol 1975;93(10):963-970.  https://PubMed.gov/1180755
  9. Levy SG, McCartney AC, Baghai MH, Barrett MC, Moss J. Pathology of the iridocorneal-endothelial syndrome. The ICE-cell. Invest Ophthalmol Vis Sci 1995;36(13):2592-2601.  https://PubMed.gov/7499082
  10. Holló G, Naghizadeh F. Optical coherence tomography characteristics of the iris in Cogan-Reese syndrome. Eur J Ophthalmol 2014;24(5):797-799.  https://PubMed.gov/24729138. DOI: 10.5301/ejo.5000465
  11. GAZALA JR. Progressive essential iris atrophy. Am J Ophthalmol 1960;49:713-723.  https://PubMed.gov/13827014
  12. Doe EA, Budenz DL, Gedde SJ, Imami NR. Long-term surgical outcomes of patients with glaucoma secondary to the iridocorneal endothelial syndrome. Ophthalmology 2001;108(10):1789-1795.  https://PubMed.gov/11581050
  13. Yildiz EH, Hoskins E, Fram N, Rapuano CJ, Hammersmith KM, Laibson PR, Cohen EJ. Third or greater penetrating keratoplasties: indications, survival, and visual outcomes. Cornea 2010;29(3):254-259.  https://PubMed.gov/20118784. DOI: 10.1097/ICO.0b013e3181b31b6f
  14. Fajgenbaum MA, Hollick EJ. Descemet Stripping Endothelial Keratoplasty in Iridocorneal Endothelial Syndrome: Postoperative Complications and Long-Term Outcomes. Cornea 2015;34(10):1252-1258.  https://PubMed.gov/26203744. DOI: 10.1097/ICO.0000000000000530
  15. Alvim PT, Cohen EJ, Rapuano CJ, Chung CW, Pereira ML, Eagle RC, Katz LJ, Smith AF, Laibson PR. Penetrating keratoplasty in iridocorneal endothelial syndrome. Cornea 2001;20(2):134-140.  https://PubMed.gov/11248814
  16. Aldave AJ, Chen JL, Zaman AS, Deng SX, Yu F. Outcomes after DSEK in 101 eyes with previous trabeculectomy and tube shunt implantation. Cornea 2014;33(3):223-229.  https://PubMed.gov/24322807. DOI: 10.1097/ICO.0000000000000028
  17. Anshu A, Price MO, Price FW. Descemet's stripping endothelial keratoplasty: long-term graft survival and risk factors for failure in eyes with preexisting glaucoma. Ophthalmology 2012;119(10):1982-1987.  https://PubMed.gov/22705345. DOI: 10.1016/j.ophtha.2012.04.031

Suggested citation format

Madhan N, Scruggs BA, Carter PC, Melendrez J, Bettis, DI. Cogan-Reese Syndrome: A Rare Case of Unilateral Glaucoma. EyeRounds.org. posted July 20, 2018; Available from https://EyeRounds.org/cases/275-cogan-reese-syndrome.htm
